Home >> Honda >> 2009 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 147 CD Changer Connector View (Honda Accessory)

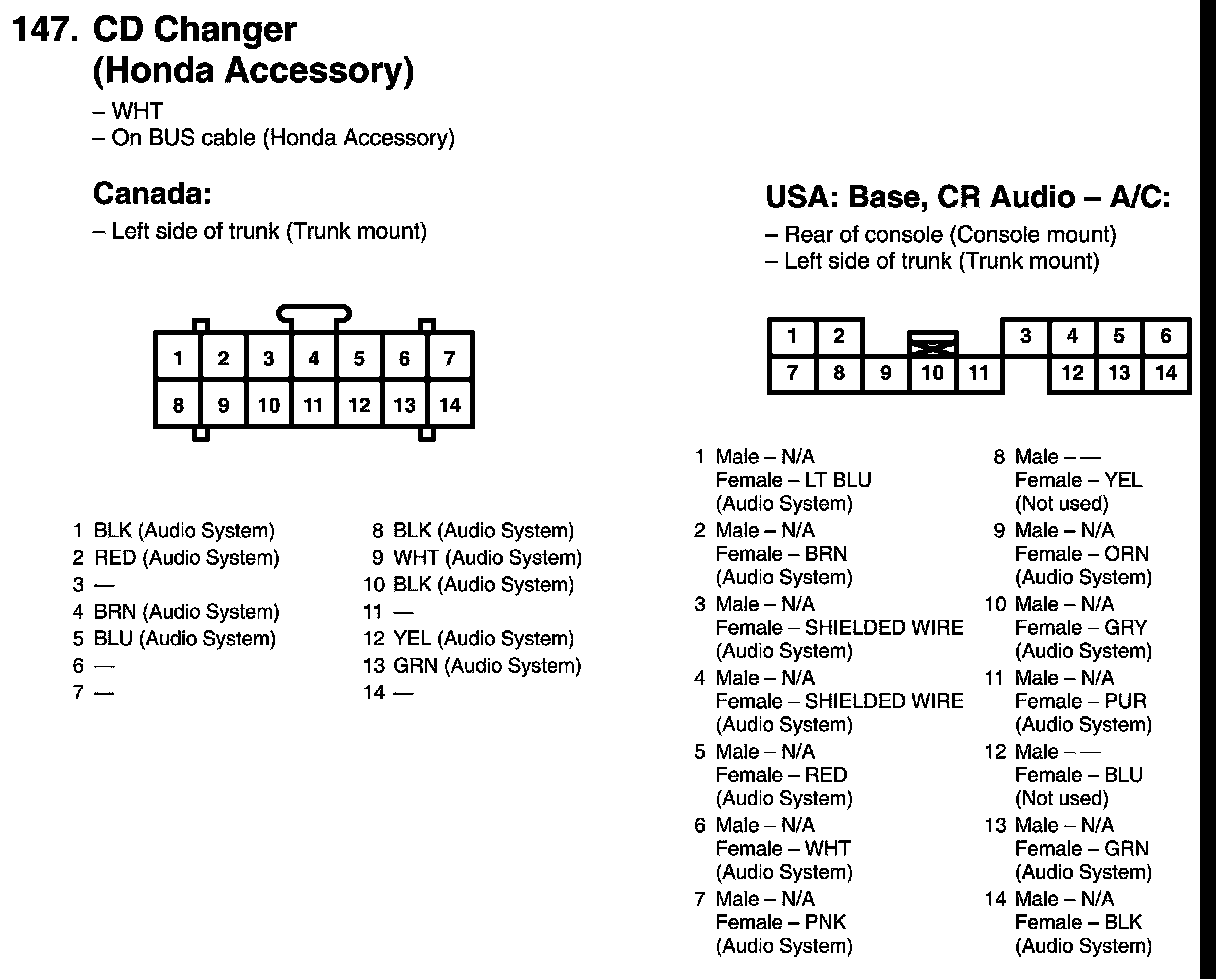

View 147 CD Changer Connector View (Honda Accessory)
