Home >> Honda >> 2009 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 149 DRL Sub-control Unit Connector View (USA)

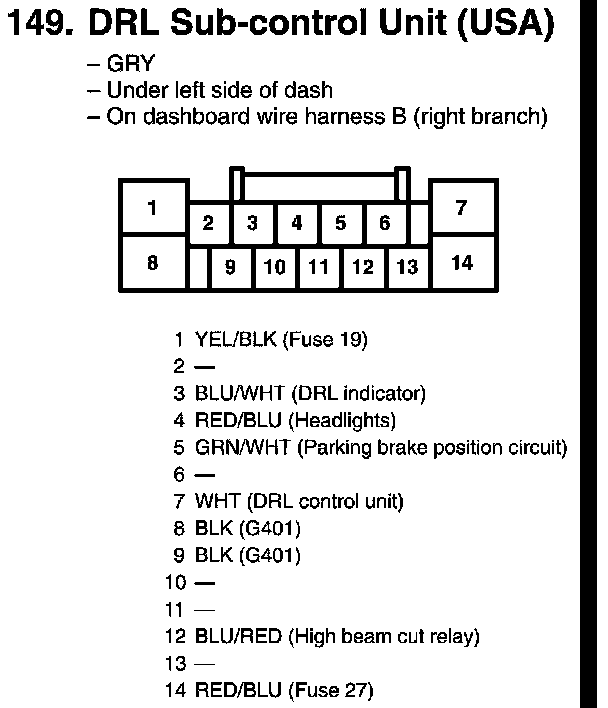

View 149 DRL Sub-control Unit Connector View (USA)
