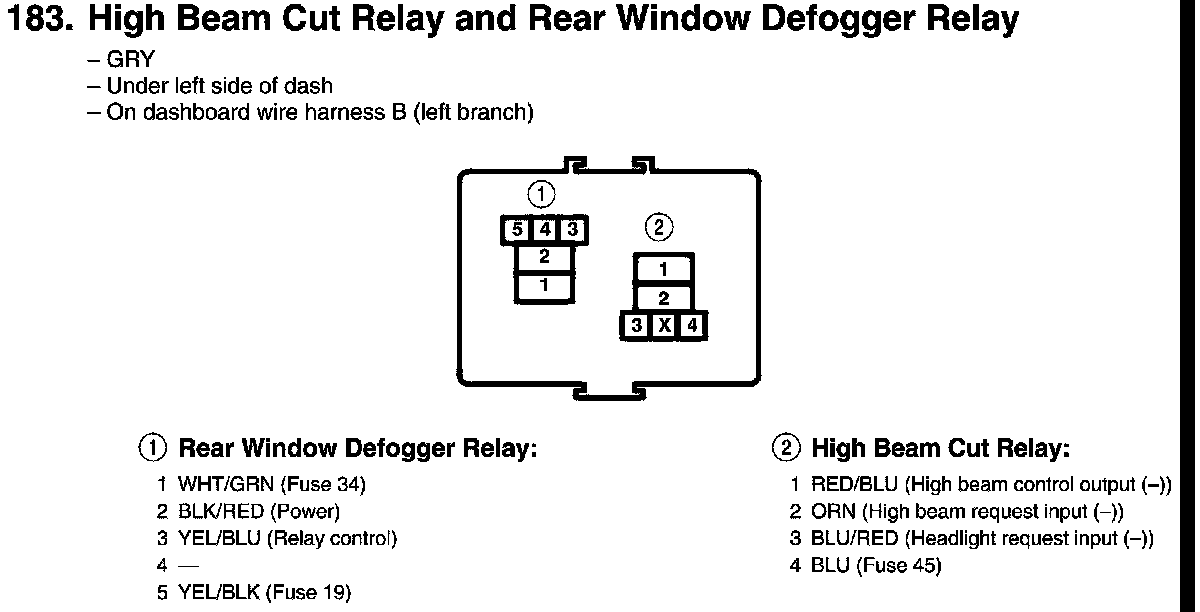

View 183 High Beam Cut Relay And Rear Window Defogger Relay Connector View
View 183 High Beam Cut Relay And Rear Window Defogger Relay Connector View
