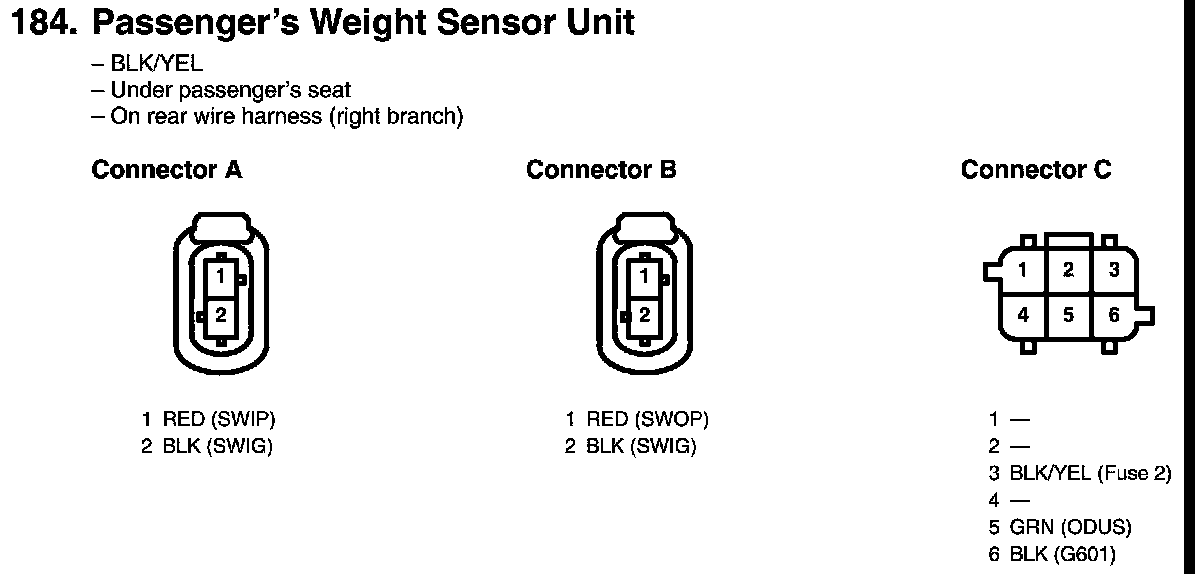

View 184 Passenger's Weight Sensor Unit Connector View
View 184 Passenger's Weight Sensor Unit Connector View
