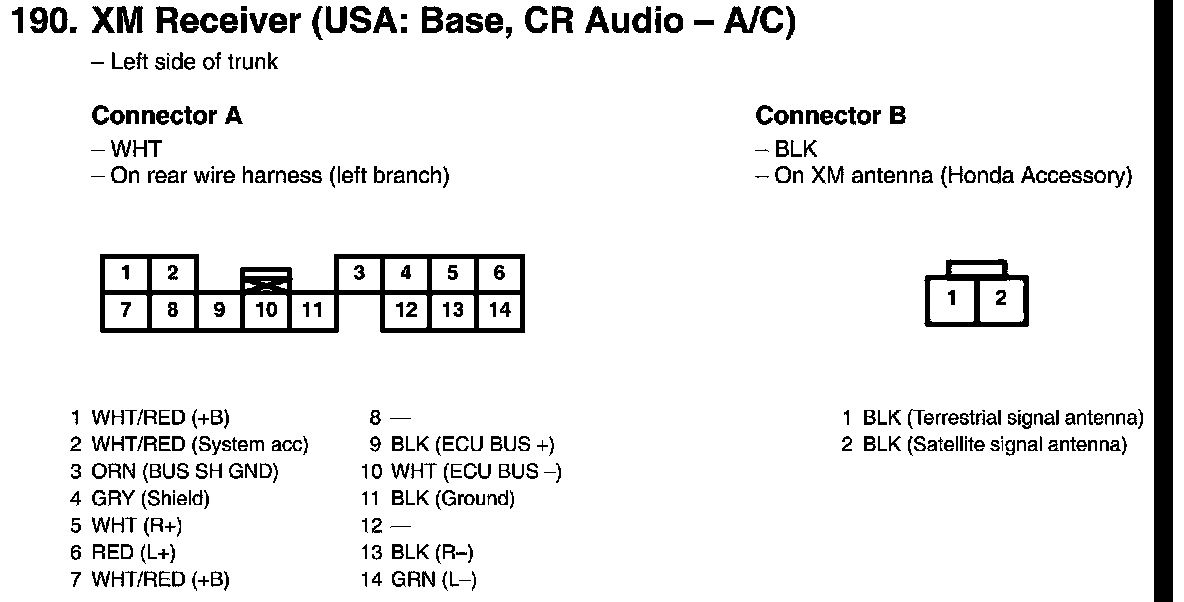

View 190 XM Receiver Connector View (USA: Base, CR Audio - A/C)
View 190 XM Receiver Connector View (USA: Base, CR Audio - A/C)
