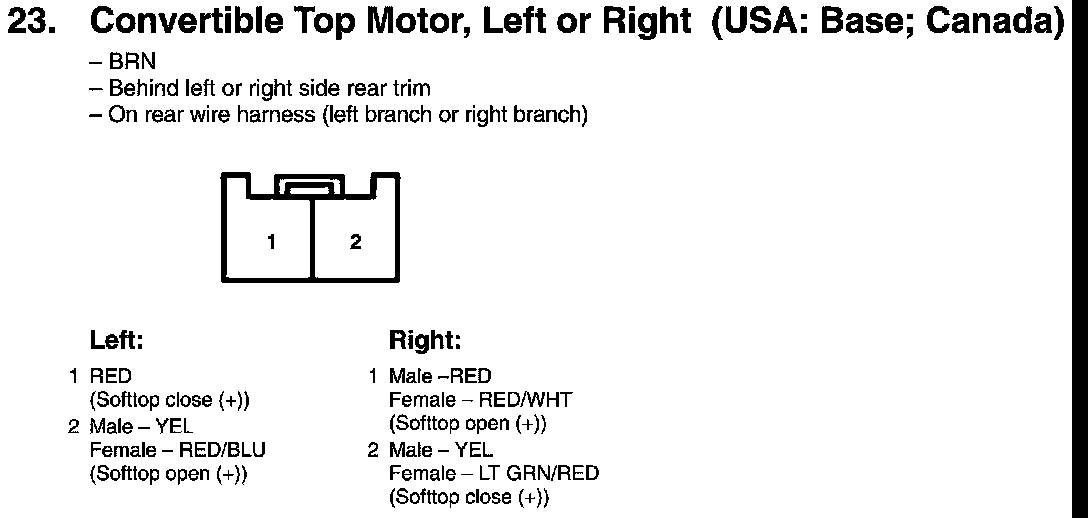

View 23 Left Or Right Convertible Top Motor Connector View (USA: Base; Canada)
View 23 Left Or Right Convertible Top Motor Connector View (USA: Base; Canada)
