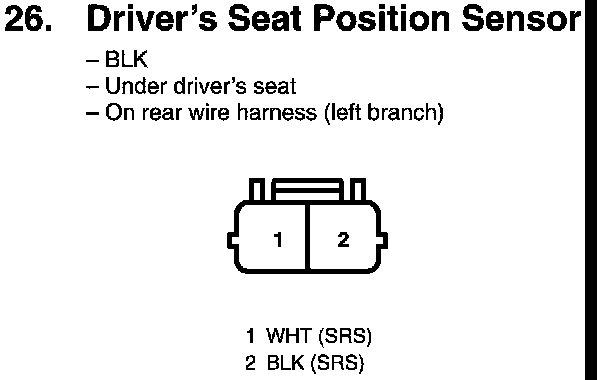

View 26 Driver's Seat Position Sensor Connector View
View 26 Driver's Seat Position Sensor Connector View
