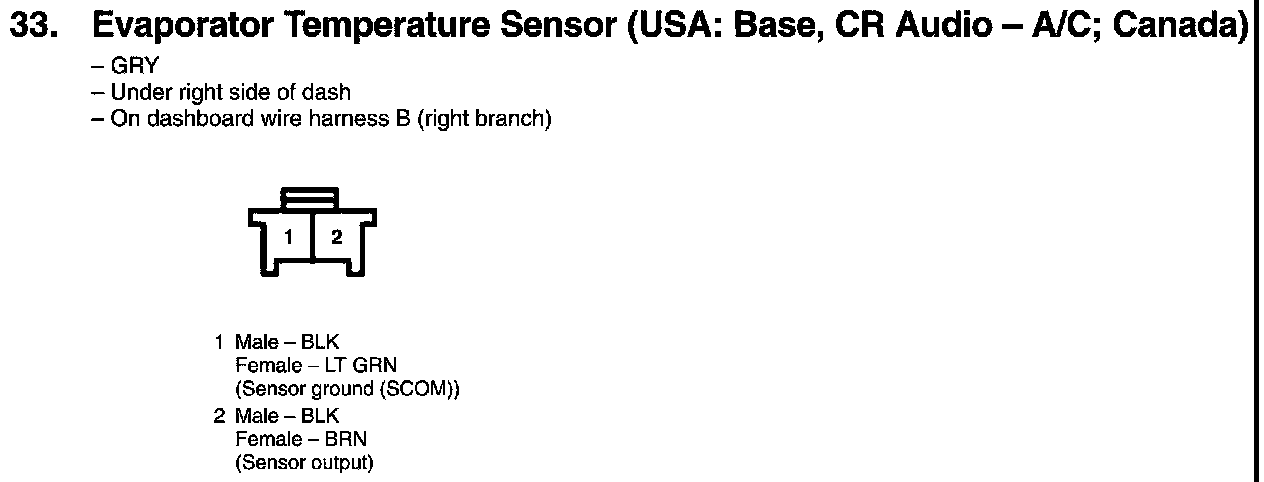

View 33 Evaporator Temperature Sensor Connector View (USA: Base, CR Audio - A/C; Canada)
View 33 Evaporator Temperature Sensor Connector View (USA: Base, CR Audio - A/C; Canada)
