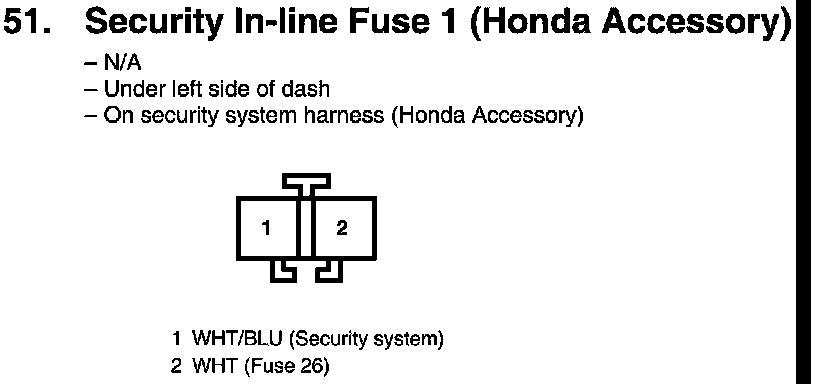

View 51 Security In-line Fuse 1 Connector View (Honda Accessory)
View 51 Security In-line Fuse 1 Connector View (Honda Accessory)
