Home >> Honda >> 2009 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 86 Passenger's Seat Belt Buckle Switch Connector View

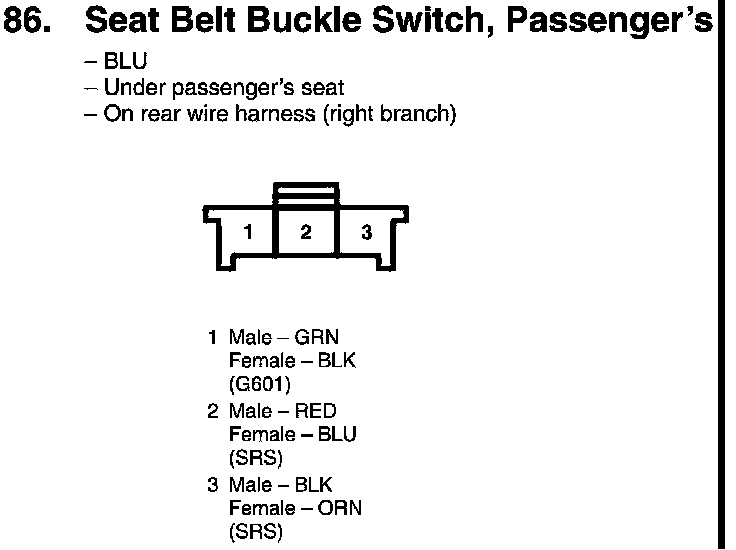

View 86 Passenger's Seat Belt Buckle Switch Connector View
