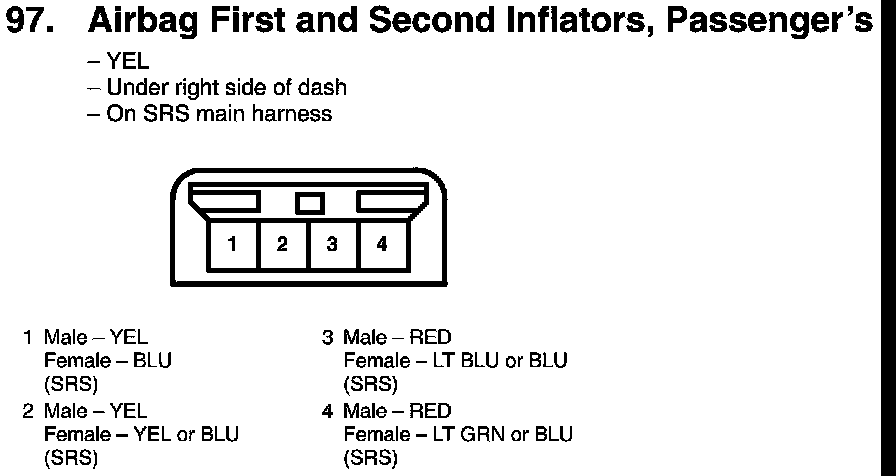

View 97 Passenger's Airbag First And Second Inflators Connector View
View 97 Passenger's Airbag First And Second Inflators Connector View
