Diagram Set 150 (Audio System)

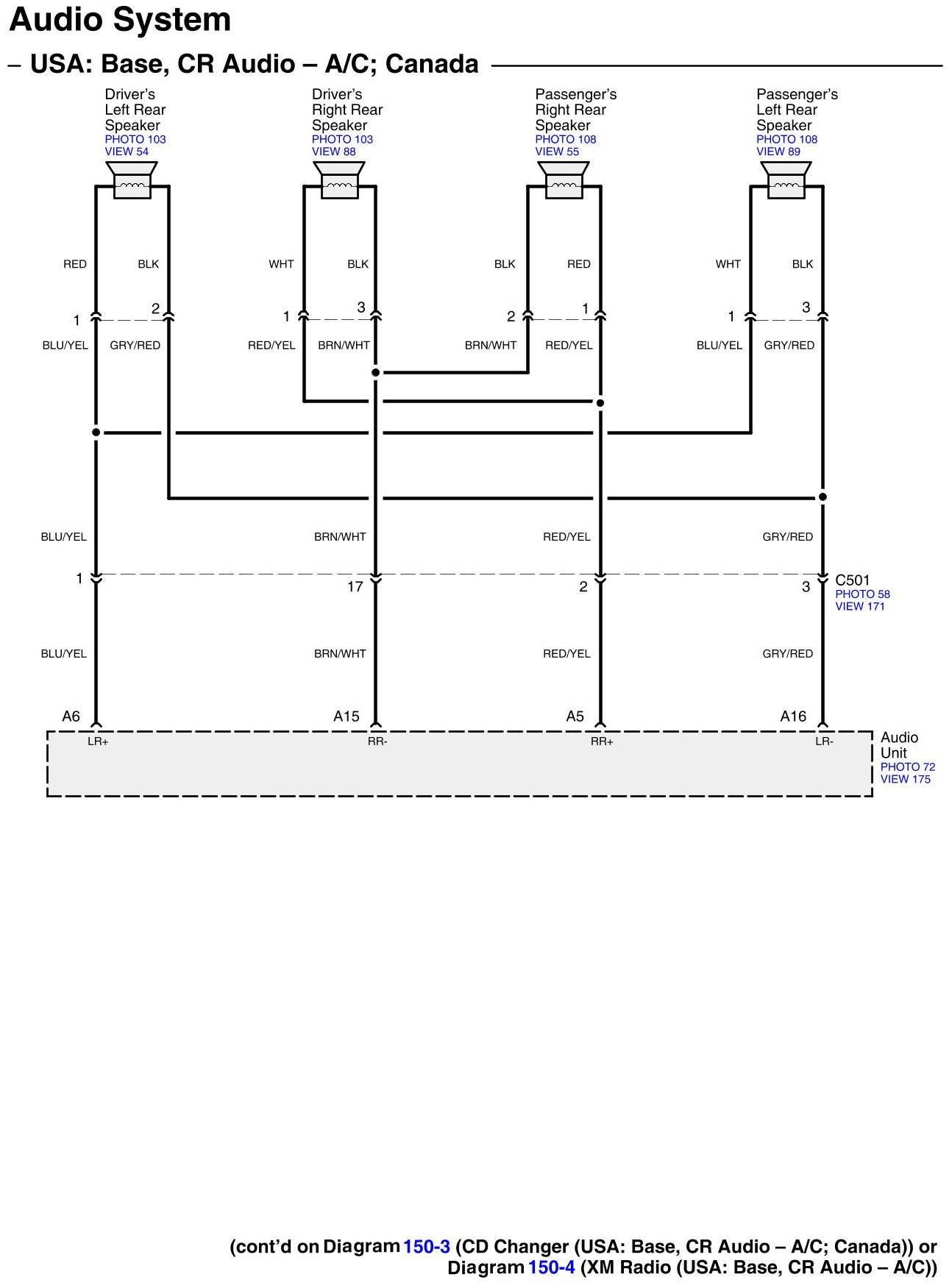

Diagram 150-0:

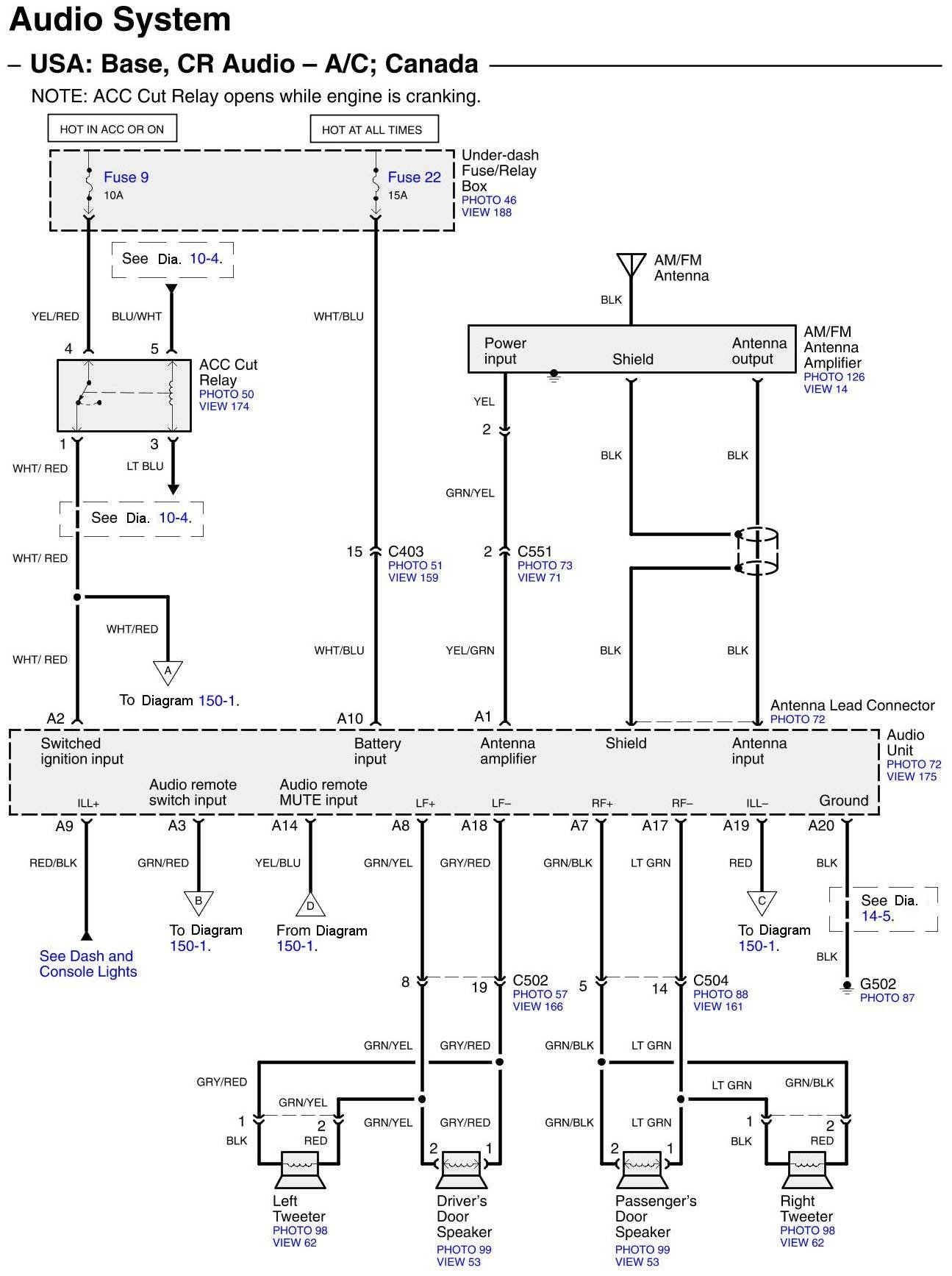

Diagram 150-1:

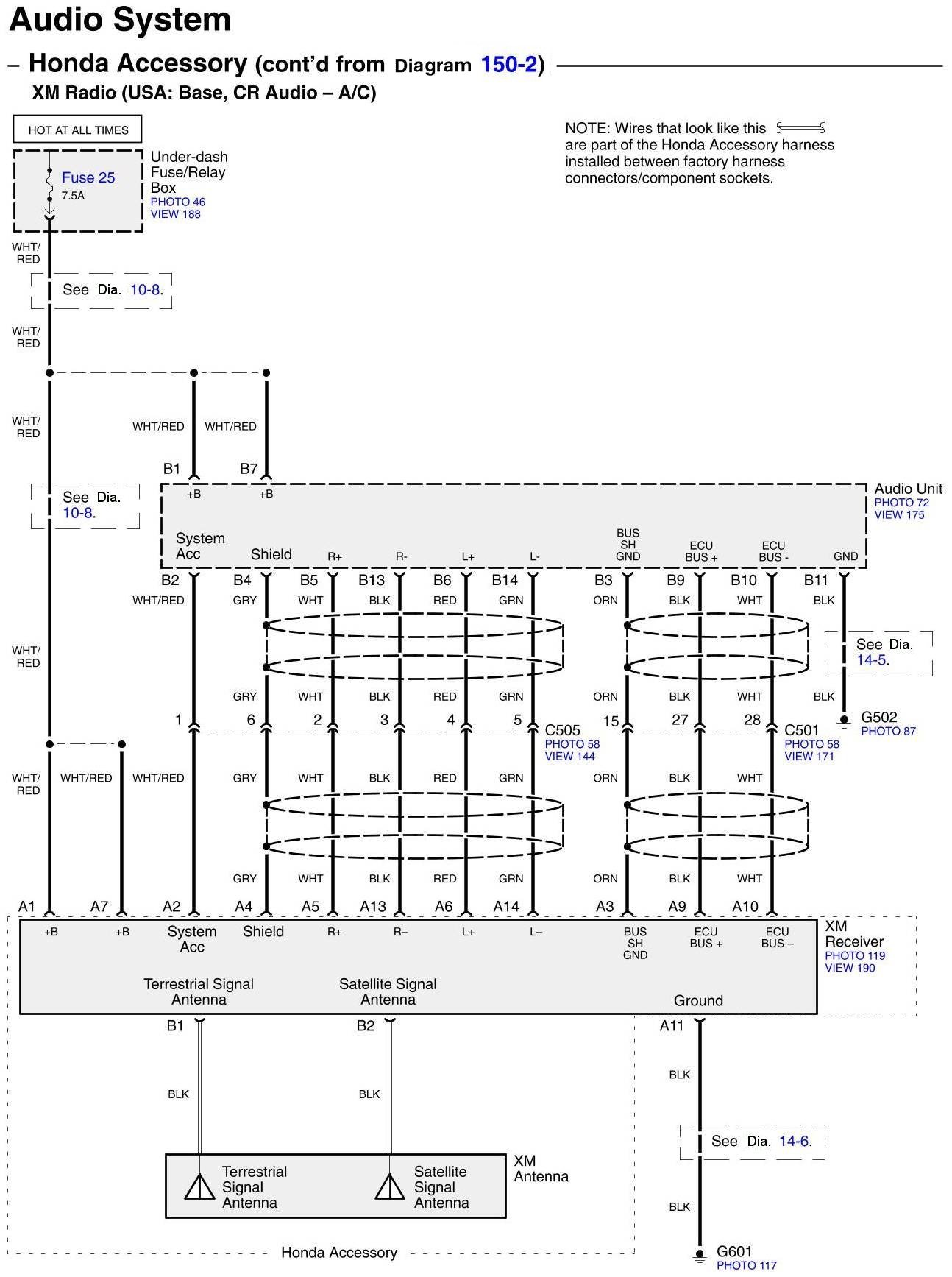

Diagram 150-2:

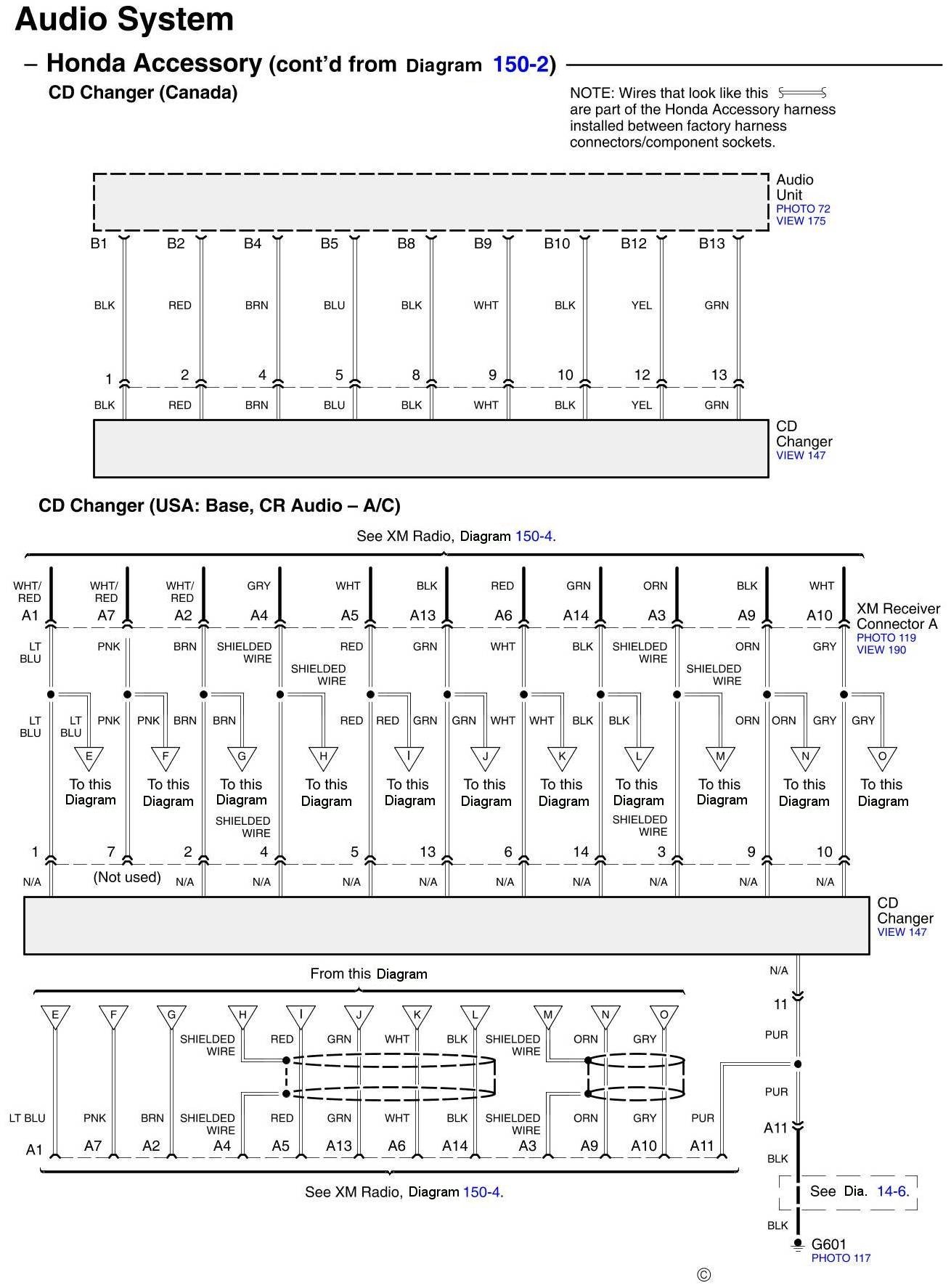

Diagram 150-3:



Diagram 150-4:
