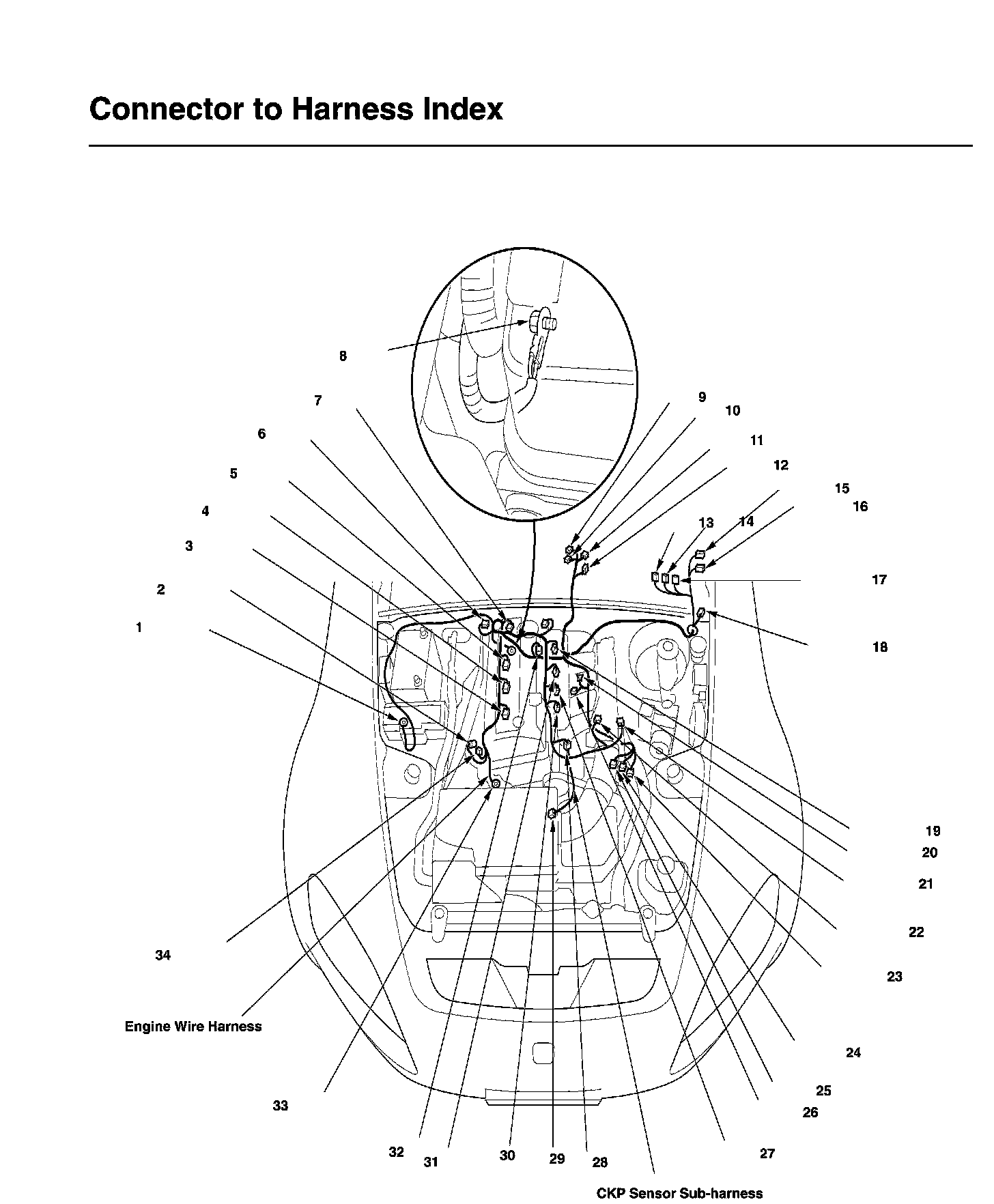

Engine Wire Harness And CKP Sensor Sub-Harness Connector And Harness Locations
Engine Wire Harness And CKP Sensor Sub-Harness Connector And Harness Locations
