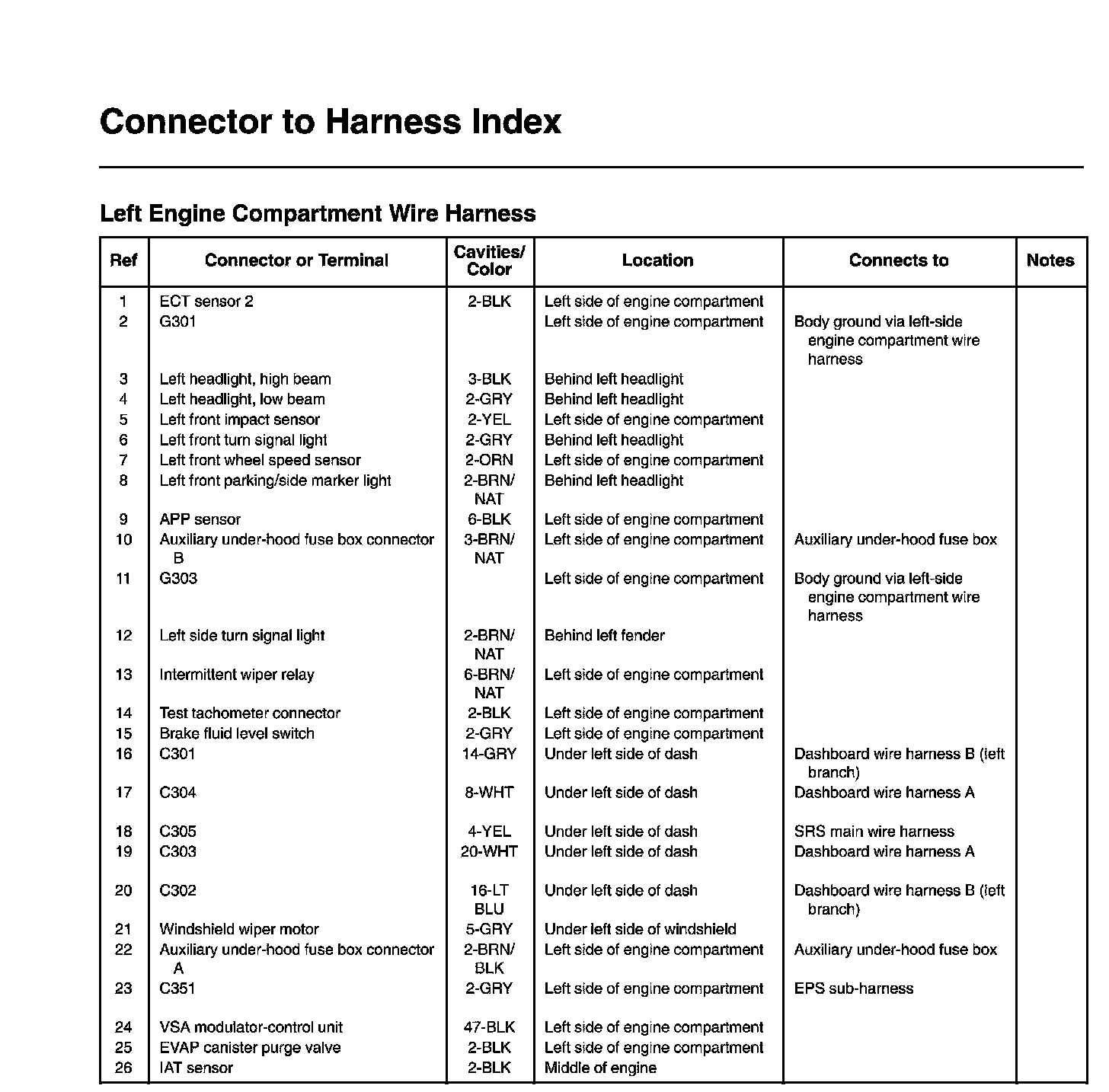

Left Engine Compartment Wire Harness Connector And Harness Locations
Left Engine Compartment Wire Harness Connector And Harness Locations
