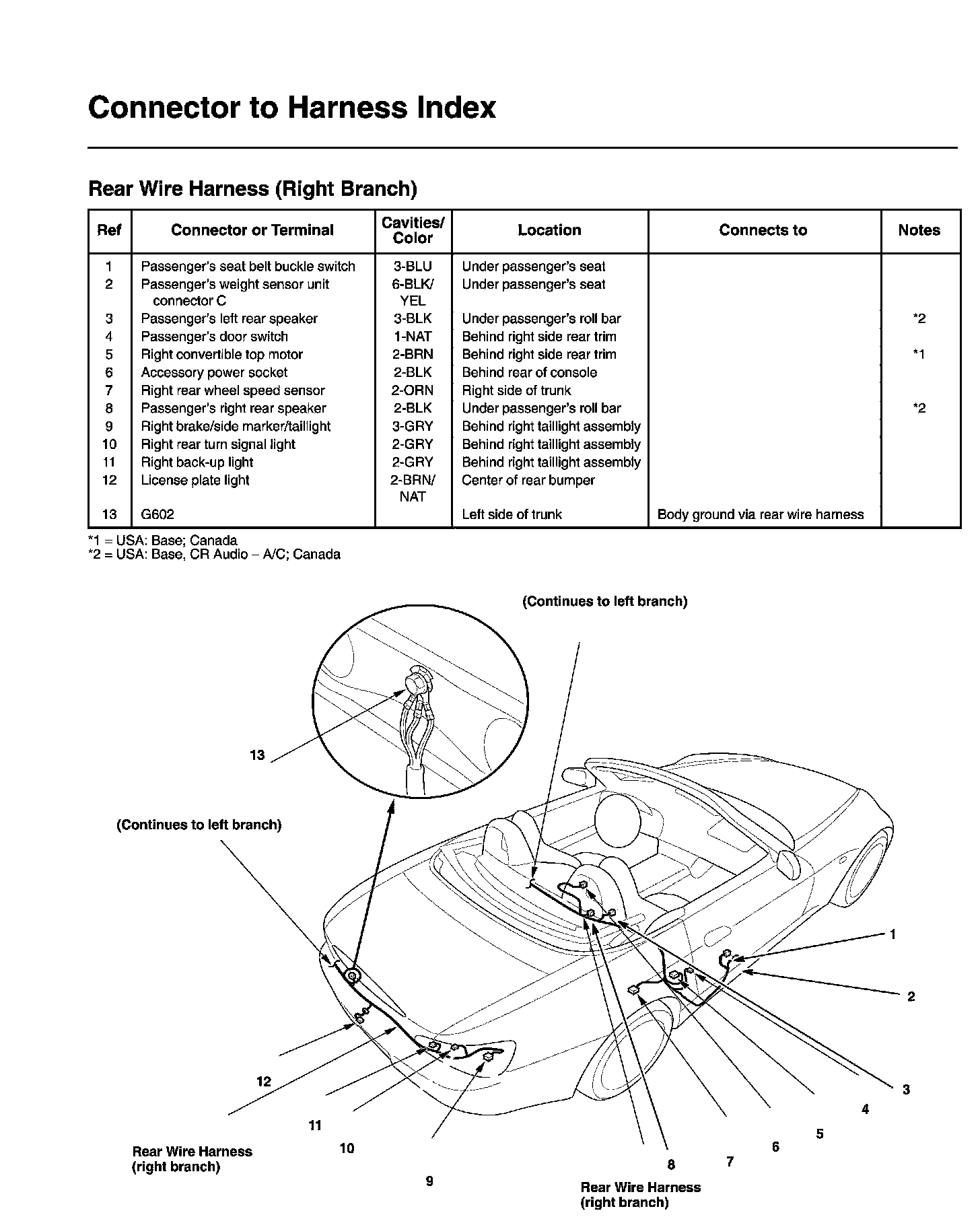

Rear Wire Harness (Right Branch) Connector And Harness Locations
Rear Wire Harness (Right Branch) Connector And Harness Locations
