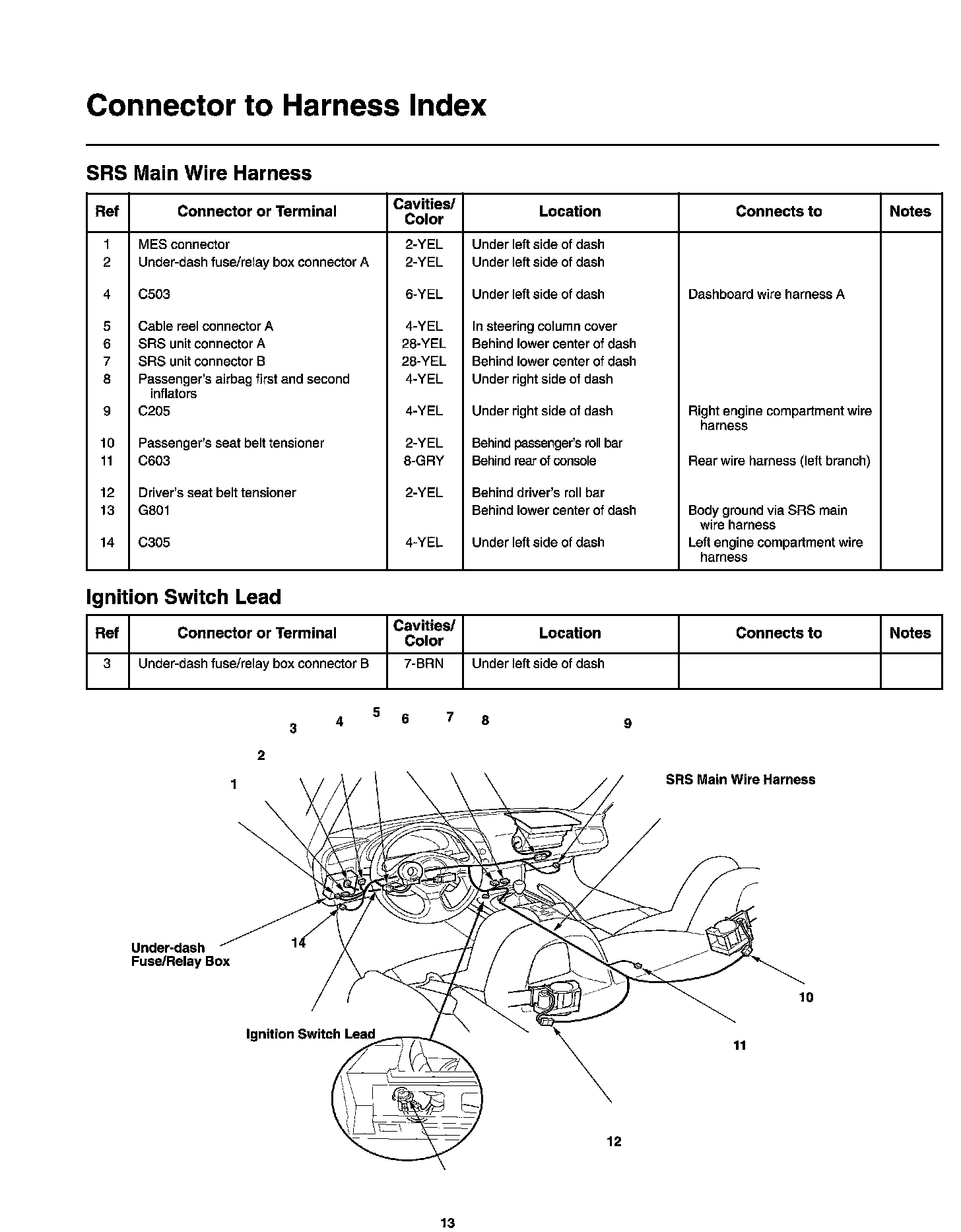

SRS Main Wire Harness And Ignition Switch Lead Connector And Harness Locations
SRS Main Wire Harness And Ignition Switch Lead Connector And Harness Locations
