Home >> Honda >> 2009 >> S2000 L4-2.2L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Locations

Cylinder Head Assembly: Locations




Cylinder Head Assembly Component Location Index

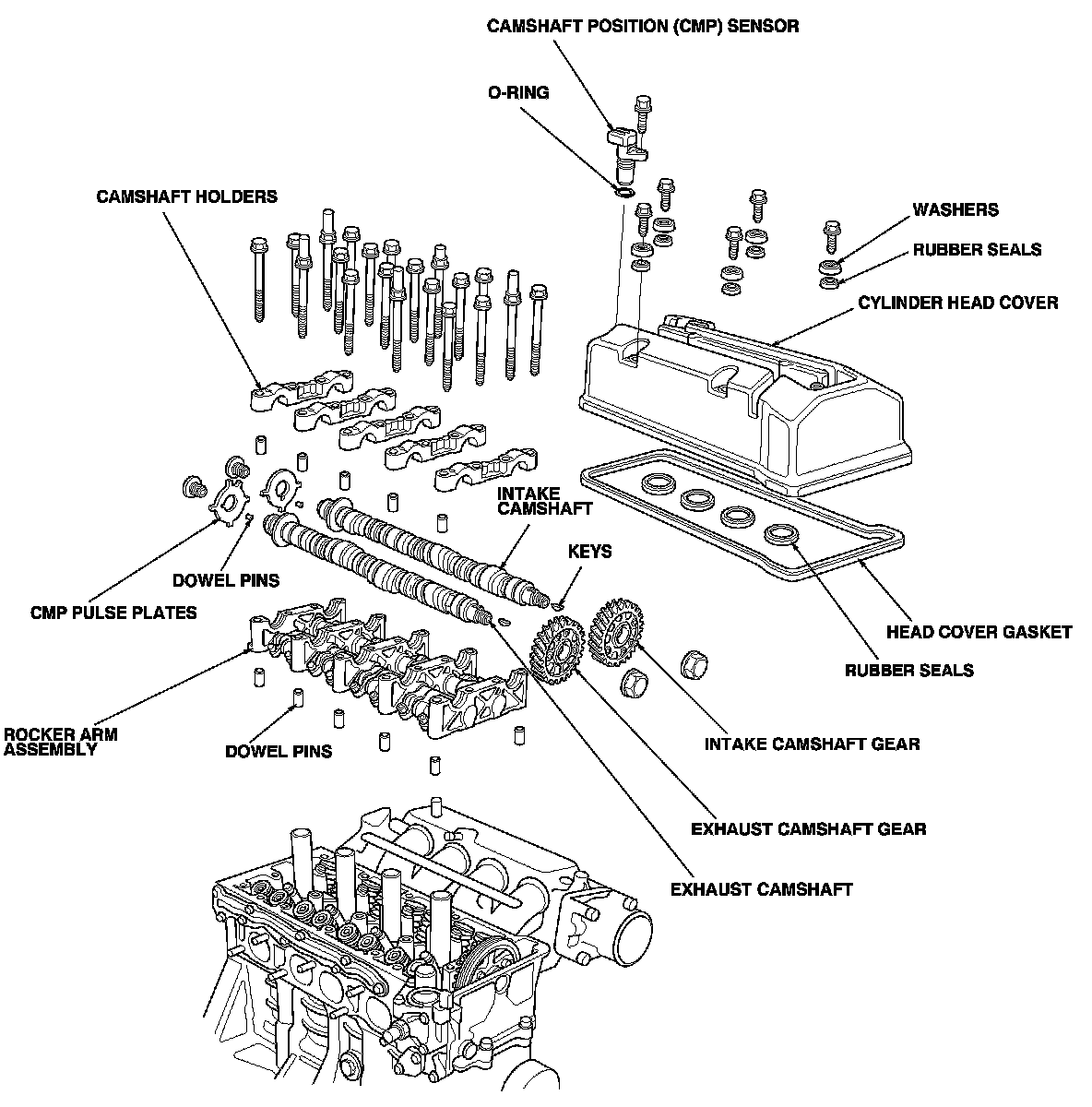

'00-05 models

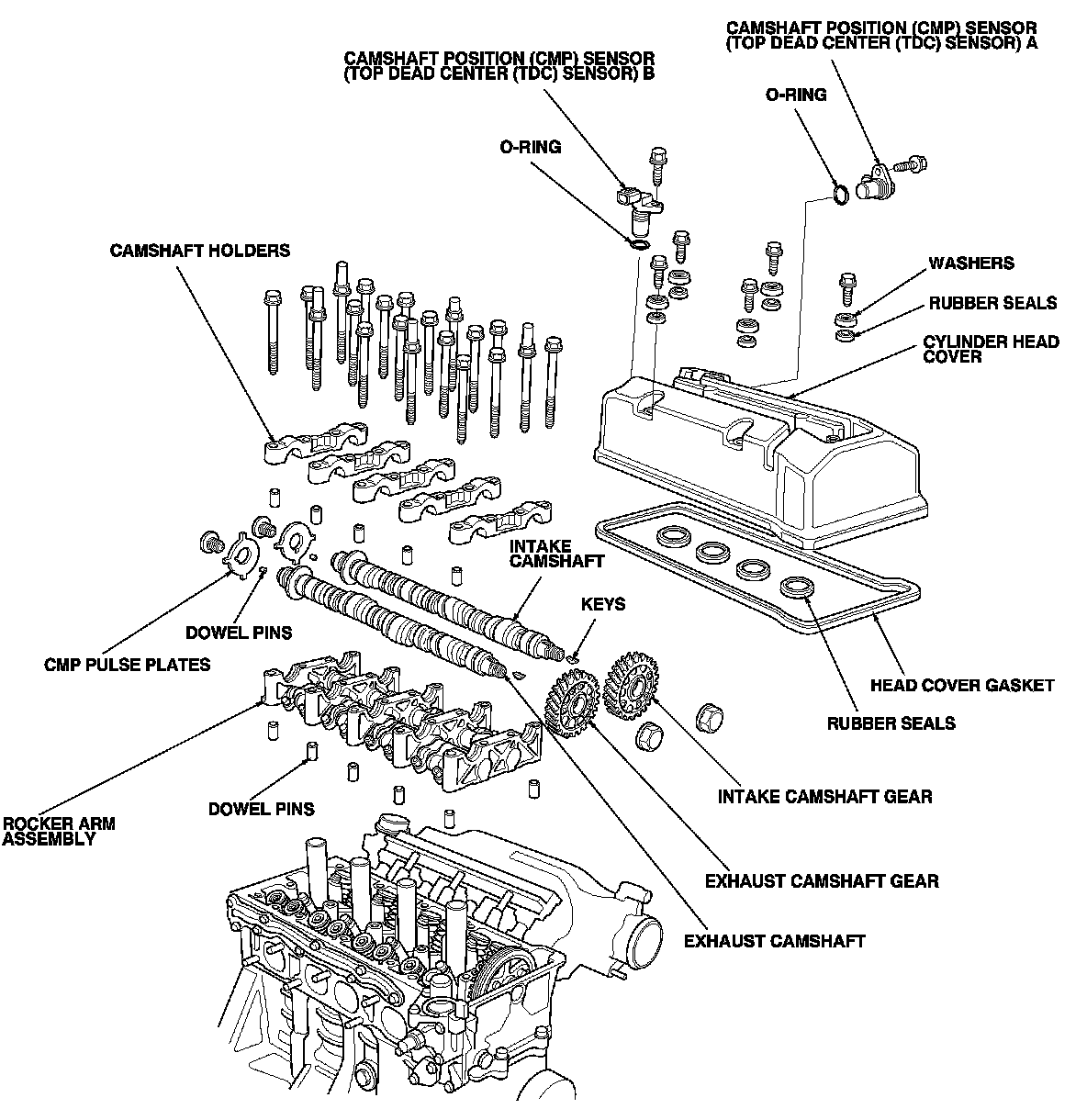

'06-09 models
