Gauges Component Location Index

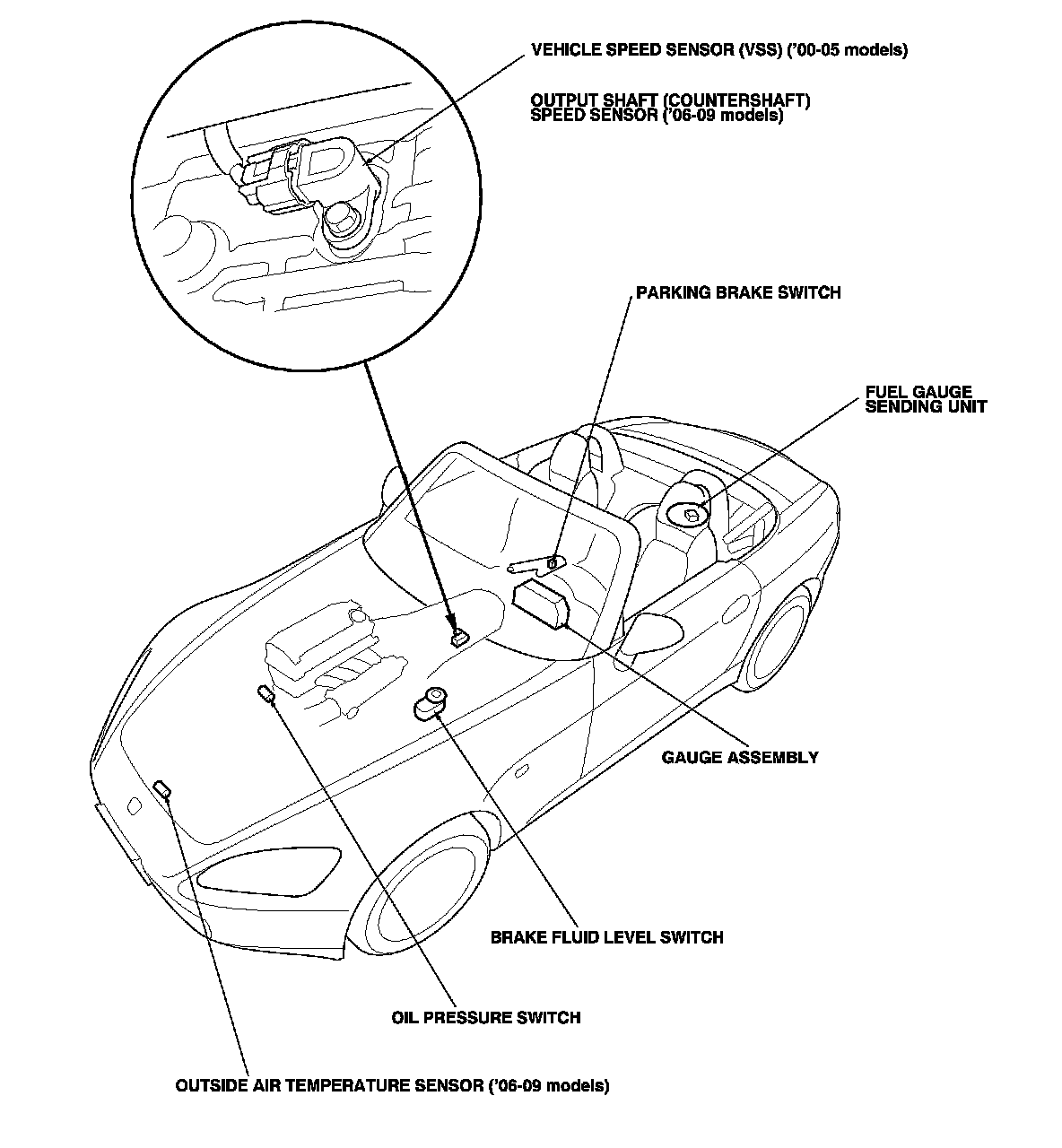

Gauges Component Location Index

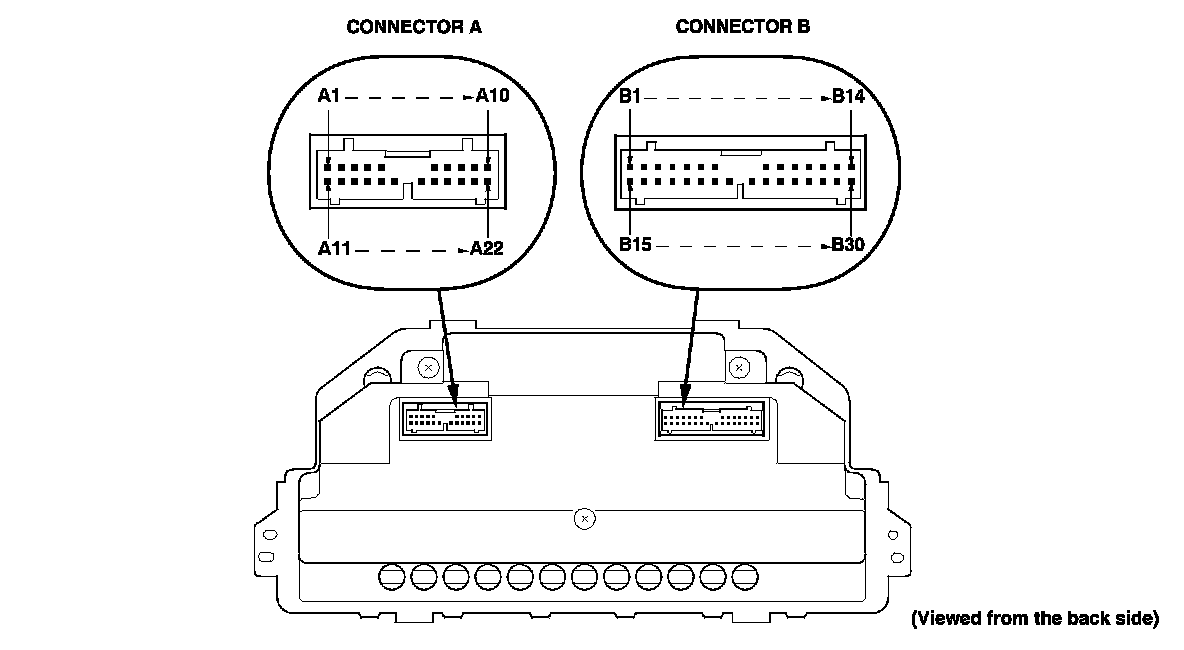

Gauge/Terminal Location Index ('00-03 models)

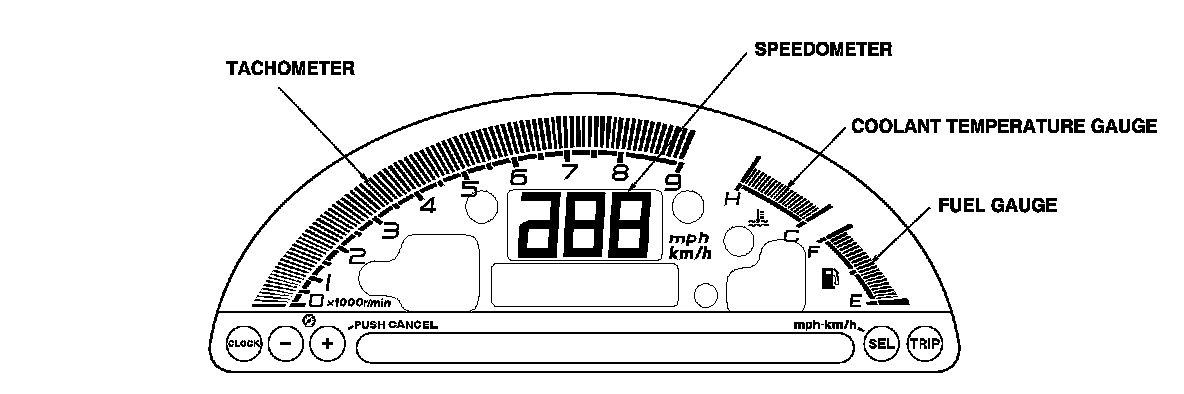

Gauge/Terminal Location Index ('04-07 models)

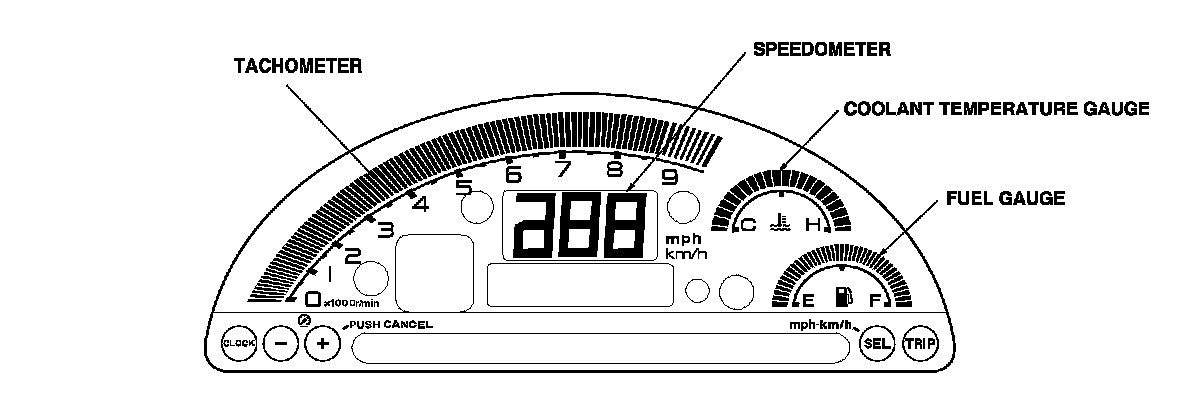

Gauge/Terminal Location Index ('08-09 models)
