License Plate Lamp: Service and Repair

License Plate Light Replacement

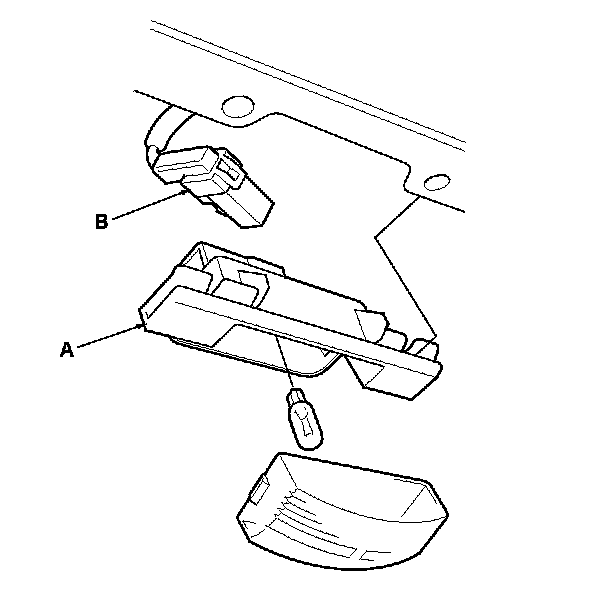

1. Remove the license plate light assembly (A), and disconnect the 2P connector (B) from it.





2. Take the lens off, then replace the bulb.

3. Install the license plate light in the reverse order of removal.
