Taillight/Brake Light LED Replacement

Taillight/Brake Light LED Replacement

'04-09 models

1. Remove the taillight. Taillight Replacement

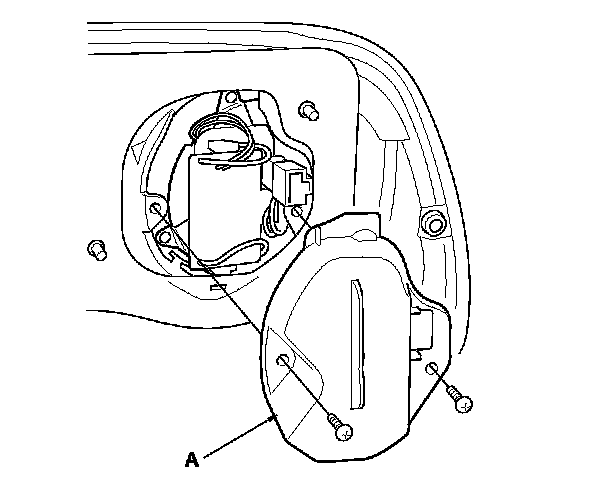

2. Remove the two screws and cover (A).






3. Remove the two screws (A) and the TORX screw (B), then pull out the LED (C).

4. Before installing the taillight, check the gasket. If it is distorted or stays compressed, replace it.

5. Install the new LED in the reverse order of removal.
