M/T Countershaft Disassembly

M/T Countershaft Disassembly

NOTE: Refer to the Exploded View in the Countershaft Reassembly, as needed, during this procedure. M/T Countershaft Reassembly

1. Remove the needle bearing.

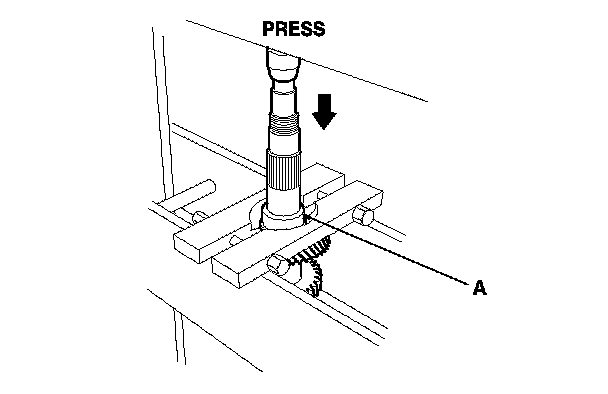

2. Remove the inner race (A) using a commercially available bearing separator and a press as shown.






3. Lift up the 27 mm locknut tab from the groove in the countershaft.






4. Securely clamp 4th and 5th gears in a bench vise with wood blocks (A).

5. Remove the 27 mm locknut (B) and the spring washer (C).






6. Remove the ball bearing using a press as shown.

7. Remove the remaining parts from the countershaft.
