Washer Motor Test

Washer Motor Test

1. Remove the right inner fender. Inner Fender Replacement

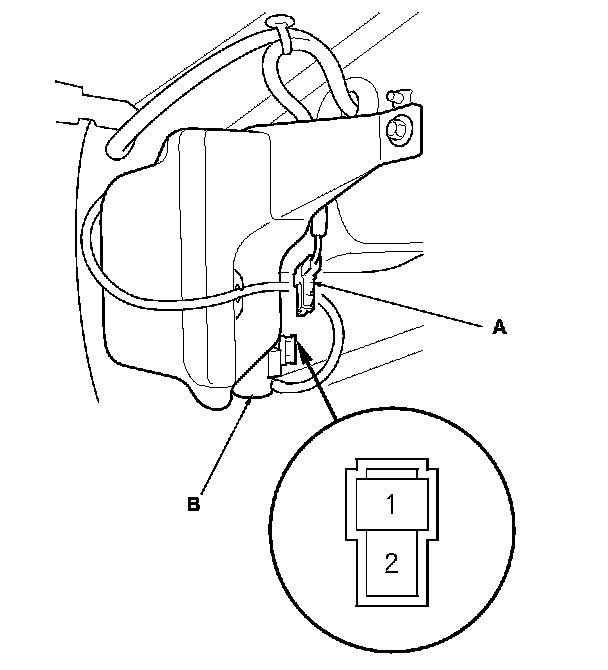

2. Disconnect the 2P connector (A) from the washer motor (B).

3. Test the washer motor by connecting battery power to terminal No. 1 and ground to terminal No. 2.

4. If the motor does not run or fails to run smoothly, replace the motor.
