Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Pull away the right inner fender. Inner Fender Replacement

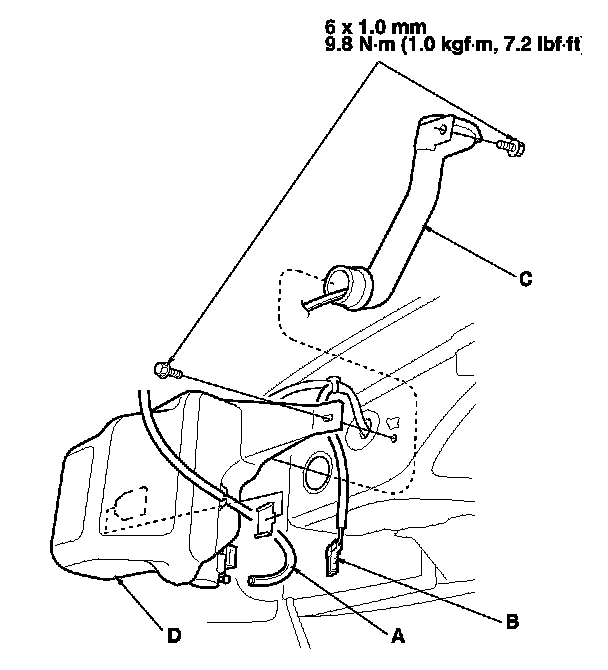

2. Disconnect the washer tube (A) and the washer motor 2P connector (B).

3. Remove the bolts, then separate and remove the filler neck (C) from the washer reservoir (D).





4. Remove the washer reservoir.

5. Install the washer reservoir in the reverse order of removal. Check the washer motor operation.

USA models





Canada models
