11-11

SRS DTC Troubleshooting: 11-11

DTC 11-11:

Short to Another Airbag Inflator in the Driver's Airbag First Inflator (4-door)

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair, General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes, and Battery Terminal Disconnection and Reconnection Procedures.

1. Clear the DTC with the HDS Reading and Clearing Diagnostic Trouble Codes.

2. Turn the ignition switch to ON (II), then wait for 10 seconds.

3. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

Is DTC 11-11 indicated?

YES -

Go to step 4.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures Reading and Clearing Diagnostic Trouble Codes. If another DTC is indicated, troubleshoot the DTC.�

4. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

Is DTC 12-11 or 12-41 indicated with DTC 11-11?

YES -

Go to step 5.

NO -

Go to step 9.

5. Turn the ignition switch to LOCK (0).

6. Disconnect the negative cable from the battery, then wait at least 3 minutes.

7. Disconnect SRS unit connector A (39P) from the SRS unit Service and Repair.

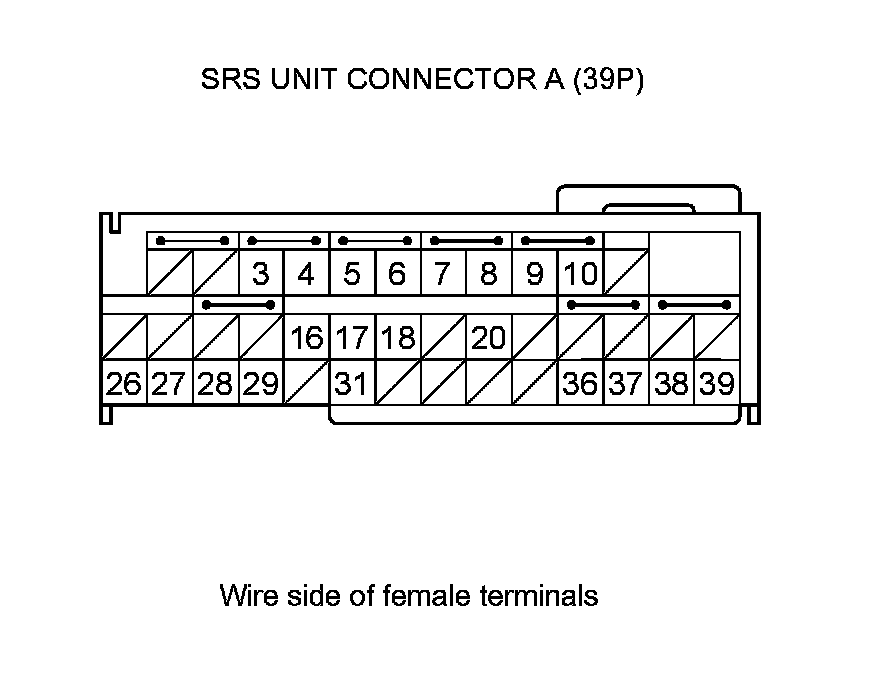

8. Check for continuity between the terminals of SRS unit connector A (39P) according to the table. There should be no continuity.









Is there continuity?

YES -

Short to another wire in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.�

NO -

Faulty SRS unit; replace the SRS unit SRS Unit Replacement.�

9. Turn the ignition switch to LOCK (0).

10. Disconnect the negative cable from the battery, then wait at least 3 minutes.

11. Disconnect SRS unit connector A (39P) from the SRS unit Service and Repair.

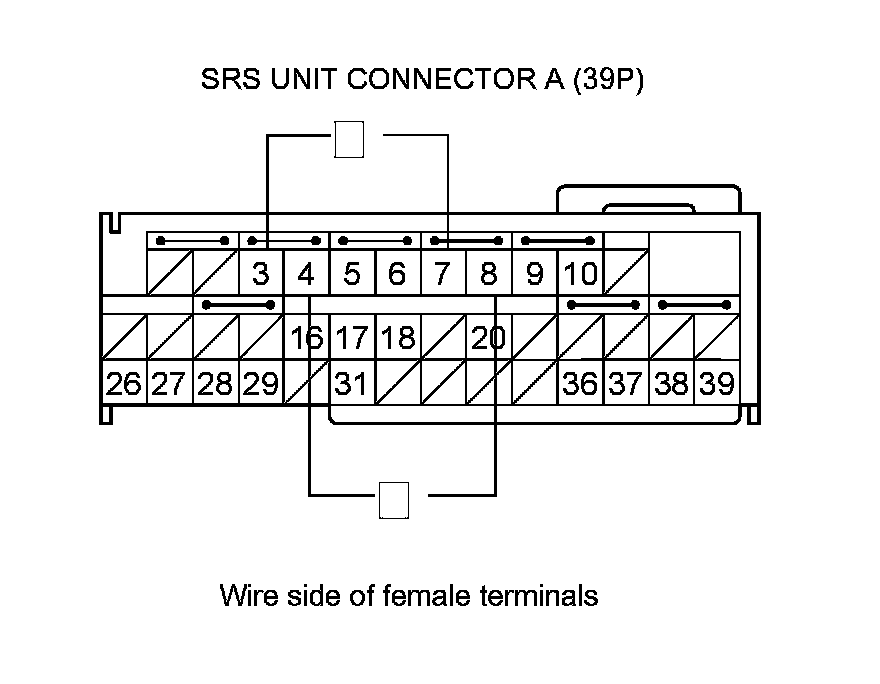

12. Check for continuity between SRS unit connector A (39P) terminals No. 3 and No. 7, and No. 4 and No. 8, respectively. There should be no continuity.





Is there continuity?

YES -

Go to step 13.

NO -

Faulty SRS unit; replace the SRS unit SRS Unit Replacement.�

13. Disconnect the driver's airbag 4P connector from the cable reel 4P connector Service and Repair.

14. Check for continuity between SRS unit connector A (39P) terminals No. 3 and No. 7, and No. 4 and No. 8, respectively. There should be no continuity.





Is there continuity?

YES -

Go to step 15.

NO -

Faulty driver's airbag; replace the driver's airbag Driver's Airbag Replacement, then clear the DTC.�

15. Remove the column cover Service and Repair, then disconnect the dashboard wire harness 4P connector (A) from the cable reel 4P connector.






16. Check for continuity between SRS unit connector A (39P) terminals No. 3 and No. 7, and No. 4 and No. 8, respectively. There should be no continuity.





Is there continuity?

YES -

Short to another wire in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.�

NO -

Short in the cable reel; replace the cable reel Service and Repair, then clear the DTC.�
