DTC indicator 5:

A Short in the Mode Control Motor Circuit

'08-10 models with M/T and '08-09 models 2-door with A/T

1. Turn the ignition switch to LOCK (0), and then to ON (II).

2. Do the self-diagnostic function with the HVAC control unit How to Troubleshoot the Heating and A/C Systems (Without Climate Control).

3. Check for DTCs.

Is DTC 5 indicated?

YES -

Go to step 4.

NO -

Intermittent failure. Check for loose wires or poor connections on the mode control motor circuit.�

4. Turn the ignition switch to LOCK (0).

5. Test the mode control motor Mode Control Motor Test (Without Climate Control (Models With M/T)).

Is the mode control motor OK?

YES -

Go to step 6.

NO -

Replace the mode control motor Mode Control Motor Replacement.�

6. Disconnect the mode control motor 7P connector.

7. Disconnect the HVAC control unit 24P connector.

8. Check for continuity between body ground and HVAC control unit 24P connector terminals No. 13 and No. 16 individually.





Is there continuity?

YES -

Repair a short to body ground in the wire(s) between the HVAC control unit and the mode control motor.�

NO -

Go to step 9.

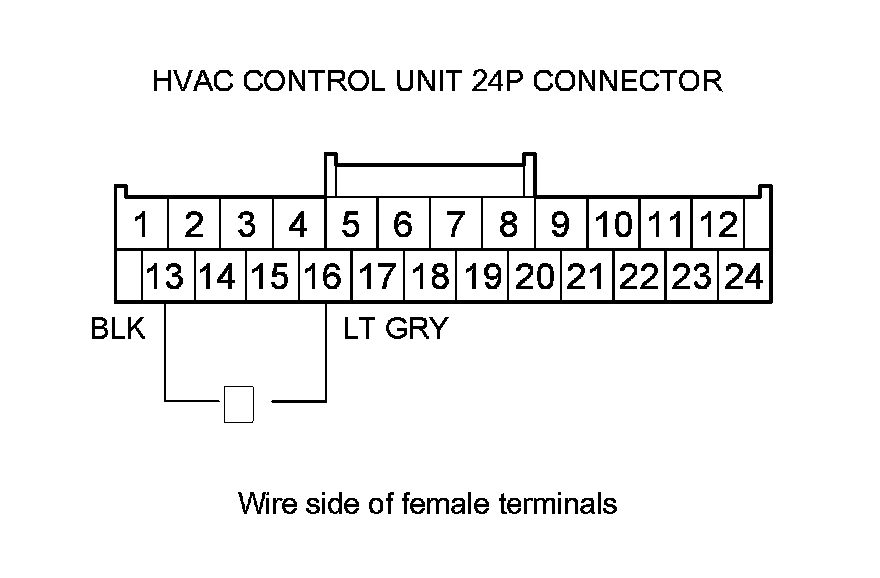

9. Check for continuity between HVAC control unit 24P connector terminals No. 13 and No. 16.





Is there continuity?

YES -

Repair a short in the wires.�

NO -

Go to step 10.

10. Turn the ignition switch to ON (II), and check the same terminals for voltage between each terminal and body ground.





Is there any voltage?

YES -

Repair a short to power in the wire(s) between the HVAC control unit and the mode control motor. This short may also damage the HVAC control unit. Repair a short to power before replacing the HVAC control unit.�

NO -

Substitute a known-good HVAC control unit and recheck. If the symptom/indication goes away and the mode control motor runs, replace the original HVAC control unit HVAC Control Unit Removal/Installation.�
