Manufacturer Code Charts: 6

DTC Troubleshooting: 6

DTC indicator 6:

A Problem in the Mode Control Linkage, Door, or Motor Circuit

'08-10 models with M/T and '08-09 models 2-door with A/T

1. Turn the ignition switch to LOCK (0), and then to ON (II).

2. Do the self-diagnostic function with the HVAC control unit How to Troubleshoot the Heating and A/C Systems (Without Climate Control).

3. Check for DTCs.

Is DTC 6 indicated?

YES -

Go to step 4.

NO -

Intermittent failure. Check for loose wires or poor connections on the mode control motor circuit.�

4. Turn the ignition switch to LOCK (0).

5. Test the mode control motor Mode Control Motor Test (Without Climate Control (Models With M/T)).

Is the mode control motor OK?

YES -

Go to step 6.

NO -

Replace an the mode control motor Mode Control Motor Replacement, or repair the mode control linkage or door.�

6. Disconnect the mode control motor 7P connector.

7. Disconnect the HVAC control unit 24P connector.

8. Check for continuity between the following terminals of the HVAC control unit 24P connector and the mode control motor 7P connector.









Is there continuity?

YES -

Go to step 9.

NO -

Repair an open in the wire(s) between the HVAC control unit and the mode control motor.�

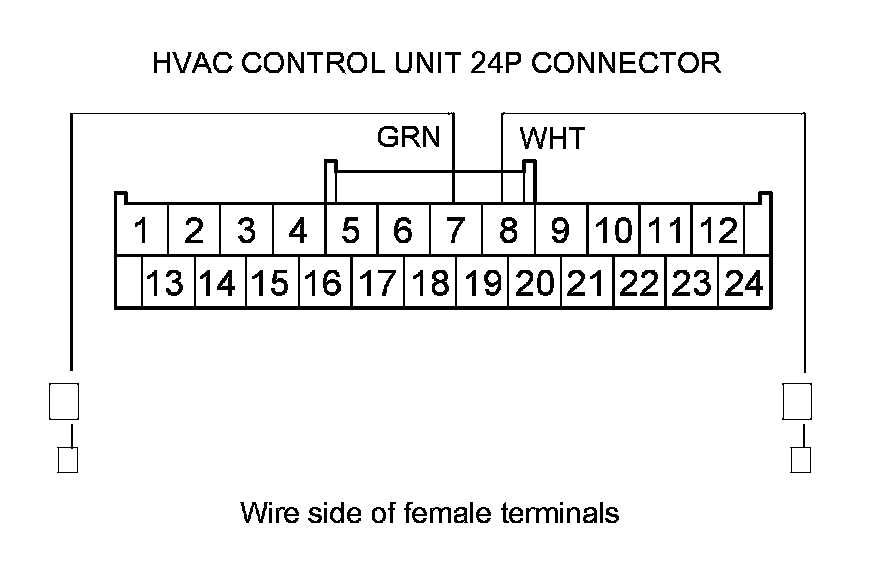

9. Check for continuity between body ground and HVAC control unit 24P connector terminals No. 7 and No. 8 individually.





Is there continuity?

YES -

Repair a short to body ground in the wire(s) between the HVAC control unit and the mode control motor.�

NO -

Substitute a known-good HVAC control unit, and recheck. If the symptom/indication goes away, replace the original HVAC control unit HVAC Control Unit Removal/Installation.�
