SRS DTC Troubleshooting: 61-2x

DTC 61-2x ("x" can be 0 thru 9 or A thru F):

Short in the Driver's Seat Belt Buckle Switch

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair and General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes.

1. Clear the DTC with the HDS Reading and Clearing Diagnostic Trouble Codes.

2. Turn the ignition switch to LOCK (0), then wait for 10 seconds.

3. Turn the ignition switch to ON (II), then buckle and unbuckle the driver's seat belt several times.

4. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

Is DTC 61-2x indicated?

YES -

Go to step 5.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures Reading and Clearing Diagnostic Trouble Codes. If another DTC is indicated, troubleshoot the DTC.�

5. Turn the ignition switch to LOCK (0).

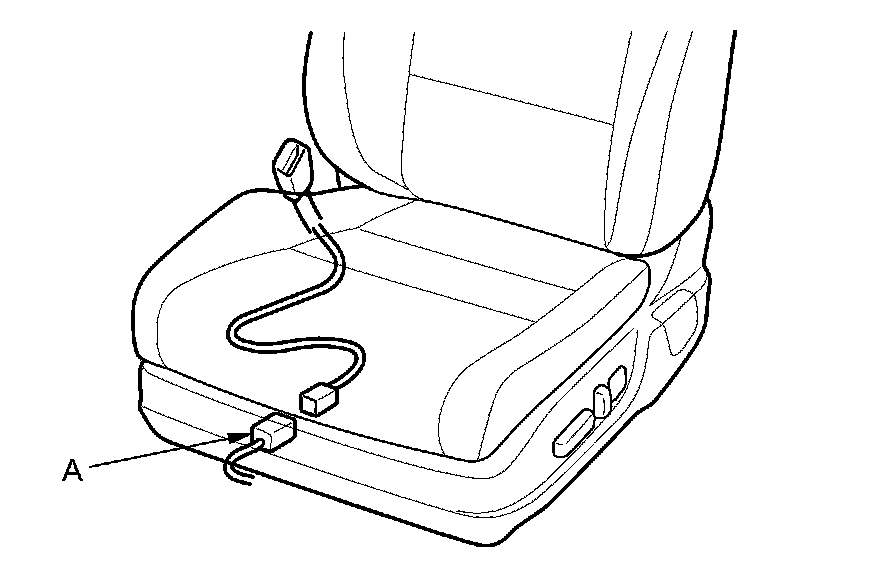

6. Disconnect the SRS floor wire harness 2P connector (A) from the driver's seat belt buckle switch 2P connector.






7. Turn the ignition switch to ON (II).

8. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

Is DTC 61-2x indicated?

YES -

Short to ground in the SRS floor wire harness; replace the SRS floor wire harness, then clear the DTC.�

NO -

Faulty driver's seat belt buckle switch; replace the driver's seat belt buckle assembly, 4-door Front Seat Belt Replacement (4-Door), 2-door Front Seat Belt Replacement (2-Door), then clear the DTC.�
