81-61
DTC Troubleshooting: 81-61, 81-62
DTC 81-61:
No Signal From the ODS Unit
DTC 81-62:
Incorrect Data From the ODS Unit
NOTE:
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair, General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes, and Battery Terminal Disconnection and Reconnection Procedures.
- 2-door: Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software SRS Unit Update, and retest.
1. Clear the DTC with the HDS Reading and Clearing Diagnostic Trouble Codes.
2. Turn the ignition switch to ON (II), and wait for 10 seconds.
3. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.
Is DTC 81-61 or 81-62 indicated?
YES -
Go to step 4.
NO -
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures Reading and Clearing Diagnostic Trouble Codes. If another DTC is indicated, troubleshoot the DTC.�
4. Turn the ignition switch to LOCK (0).
5. Check the connection between the ODS unit harness 18P connector (A) and the ODS unit.
Is the connection OK?
YES -
Go to step 6.
NO -
Repair the poor connection, then clear the DTC. If DTC 81-61 or 81-62 is still present, go to step 6.
6. Turn the ignition switch to LOCK (0).
7. Check the No. 12 (7.5A) fuse in the driver's under-dash fuse/relay box.
Is the fuse OK?
YES -
Go to step 8.
NO -
Replace the fuse, then turn the ignition switch to ON (II). If the fuse blows again, check for a short in the No. 12 (7.5 A) fuse circuit (dashboard wire harness, SRS floor wire harness, or ODS unit harness).
8. Disconnect the ODS unit harness 18P connector (A) from the ODS unit.
9. Turn the ignition switch to ON (II).
10. Measure the voltage between body ground and ODS unit harness 18P connector terminal No. 1. There should be battery voltage.
Is there battery voltage?
YES -
Go to step 11.
NO -
Open in the dashboard wire harness, the SRS floor wire harness, or the ODS unit harness; replace the faulty harness, then clear the DTC.�
11. Turn the ignition switch to LOCK (0).

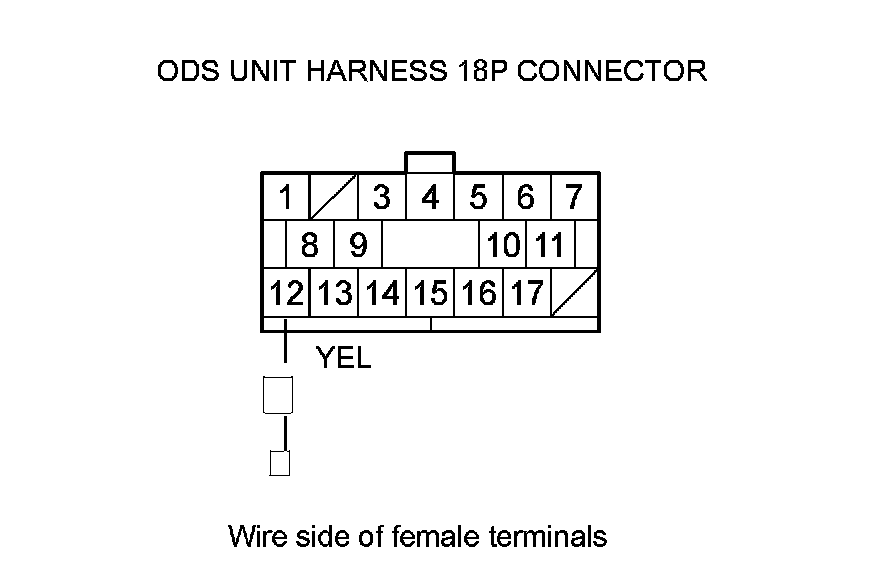

12. Measure the resistance between body ground and ODS unit harness 18P connector terminal No. 12. There should be less than 1.0 Ohms.
Is the resistance as specified?
YES -
Go to step 13.
NO -
Open in the SRS floor wire harness, the ODS unit harness, poor connection at the ground (G702) Harness Locations or poor connection at the ODS unit harness 18P connector, and the ODS unit. Check the connectors; if the connection is OK, replace the faulty harness, then clear the DTC.�
13. Disconnect the negative cable from the battery, then wait at least 3 minutes.
14. Disconnect SRS unit connector B (39P) from the SRS unit Service and Repair.
15. Measure the resistance between body ground and SRS unit connector B (39P) terminal No. 1. There should be an open circuit or at least 1 MOhms.
Is the resistance as specified?
YES -
Go to step 16.
NO -
Short to another wire in the SRS floor wire harness or the ODS unit harness; replace the faulty harness, then clear the DTC.�
16. Turn the ignition switch to ON (II).
17. Measure the voltage between body ground and SRS unit connector B (39P) terminal No. 1. There should be less than 0.2 V.
Is the voltage as specified?
YES -
Go to step 18.
NO -
Short to power in the SRS floor wire harness or the ODS unit harness; replace the faulty harness, then clear the DTC.�
18. Turn the ignition switch to LOCK (0).

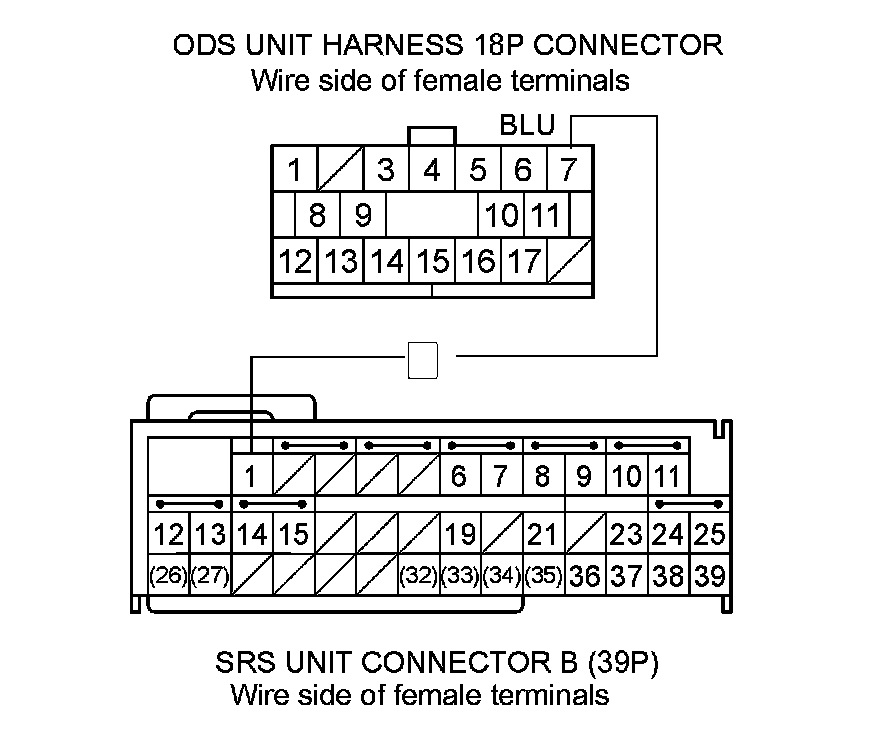

19. Measure the resistance between SRS unit connector B (39P) terminal No. 1 and ODS unit harness 18P connector terminal No. 7. There should be less than 1.0 Ohms.
Is the resistance as specified?
YES -
Faulty ODS unit or SRS unit; replace the ODS unit ODS Unit Replacement, then clear the DTC. If the DTC is still present, replace the SRS unit SRS Unit Replacement.�
NO -
Open in the SRS floor wire harness or the ODS unit harness; replace the faulty harness, then clear the DTC.�
