SRS DTC Troubleshooting: 82-16

DTC 82-16:

No Signal From the Front Passenger's Weight Sensor (rear inner side) (4-door)

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair and General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes.

1. Clear the DTC with the HDS Reading and Clearing Diagnostic Trouble Codes.

2. Turn the ignition switch to ON (II), then wait for 10 seconds.

3. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

Is DTC 82-16 indicated?

YES -

Go to step 4.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures Reading and Clearing Diagnostic Trouble Codes.�

4. From the SRS INSPECTION menu on the HDS, select SWS DTC CHECK.

Is an SWS DTC also indicated?

YES -

- DTC 16-11: Short to power in the front passenger's weight sensor (rear inner side) power circuit; replace the ODS unit harness, then clear the DTC.�
- DTC 16-12: Short to ground in the front passenger's weight sensor (rear inner side) power circuit. Go to step 5.
- DTC 16-13: Open in the front passenger's weight sensor (rear inner side) output circuit. Go to step 12.
- DTC 16-14: Short to ground in the front passenger's weight sensor (rear inner side) output circuit. Go to step 20.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures Reading and Clearing Diagnostic Trouble Codes.�

5. Turn the ignition switch to LOCK (0).

6. Disconnect the ODS unit harness 3P connector (A) from the front passenger's weight sensor (rear inner side).

7. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

Is DTC 16-12 indicated?

YES -

Go to step 8.

NO -

Faulty front passenger's weight sensor (rear inner side); replace the front passenger's seat frame including all four front passenger's weight sensors Front Passengers Weight Sensor Replacement (4-Door), then clear the DTC.�

8. Turn the ignition switch to LOCK (0).

9. Disconnect the ODS unit harness 18P connector (A) from the ODS unit.

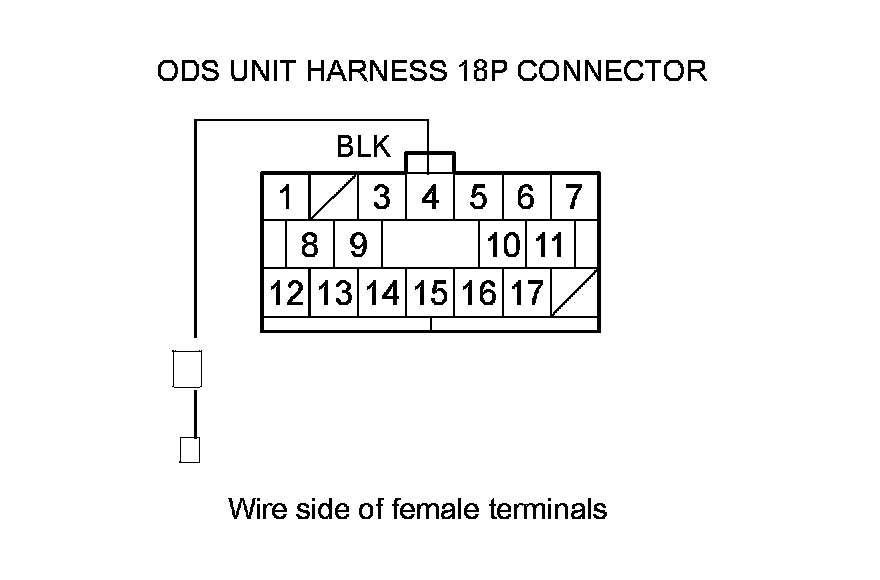

10. Measure the resistance between body ground and ODS unit harness 18P connector terminal No. 4. There should be an open circuit or at least 1 MOhms.

Is the resistance as specified?

YES -

Go to step 11.

NO -

Short to ground in the ODS unit harness; replace the ODS unit harness, then clear the DTC.�

11. Measure the resistance between ODS unit harness 18P connector terminals No. 4 and No. 14. There should be an open circuit or at least 1 MOhms.

Is the resistance as specified?

YES -

Faulty ODS unit; replace the ODS unit ODS Unit Replacement, then clear the DTC.�

NO -

Short to another wire in the ODS unit harness; replace the ODS unit harness, then clear the DTC.�

12. Turn the ignition switch to LOCK (0).

13. Swap the connections between the rear inner side front passenger's weight sensor and the front inner side sensor.

14. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

Is DTC 16-13 indicated?

YES -

Go to step 15.

NO -

Faulty front passenger's weight sensor (rear inner side); replace the front passenger's seat frame including all four front passenger's weight sensors Front Passengers Weight Sensor Replacement (4-Door), then clear the DTC.�

15. Turn the ignition switch to LOCK (0).

16. Disconnect the ODS unit harness 3P connector (A) from the front passenger's weight sensor (front inner side), and disconnect the ODS unit harness 3P connector (B) from the front passenger's weight sensor (rear inner side).

17. Disconnect the ODS unit harness 18P connector (A) from the ODS unit.

18. Turn the ignition switch to ON (II).

19. Measure the voltage between body ground and ODS unit harness 18P connector terminal No. 9. There should be less than 0.2 V.

Is the voltage as specified?

YES -

Faulty ODS unit; replace the ODS unit ODS Unit Replacement, then clear the DTC.�

NO -

Short to power in the ODS unit harness; replace the ODS unit harness, then clear the DTC.�

20. Turn the ignition switch to LOCK (0).

21. Disconnect the ODS unit harness 3P connector (A) from the front passenger's weight sensor (rear inner side).

22. Check for DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

Is DTC 16-14 indicated?

YES -

Go to step 23.

NO -

Faulty front passenger's weight sensor (rear inner side); replace the front passenger's seat frame including all four front passenger's weight sensors Front Passengers Weight Sensor Replacement (4-Door), then clear the DTC.�

23. Turn the ignition switch to LOCK (0).

24. Disconnect the ODS unit harness 18P connector (A) from the ODS unit.

25. Measure the resistance between body ground and ODS unit harness 18P connector terminal No. 9. There should be an open circuit or at least 1 MOhms.

Is the resistance as specified?

YES -

Go to step 26.

NO -

Short to ground in the ODS unit harness; replace the ODS unit harness, then clear the DTC.�

26. Measure the resistance between ODS unit harness 18P connector terminals No. 9 and No. 14. There should be an open circuit or at least 1 MOhms.
