Immobilizer-Keyless Control Unit Input Test

Immobilizer-Keyless Control Unit Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

2. Remove the steering column covers Service and Repair.

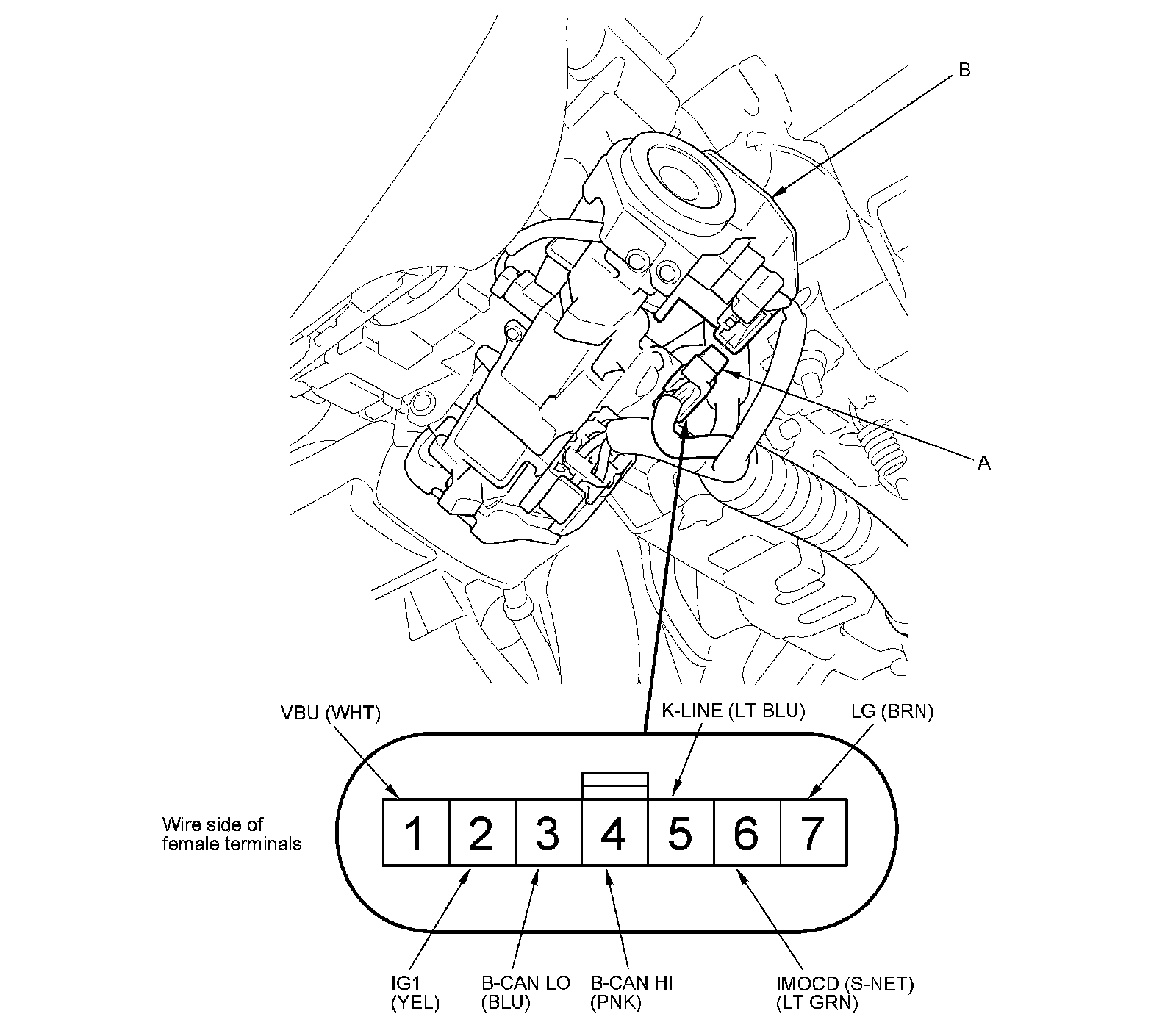

3. Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).





4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

5. With the connector still disconnected, do these input tests at the following connector.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.





6. Reconnect the connector to the immobilizer-keyless control unit, and do these input tests at the following connector.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the immobilizer-keyless control unit Service and Repair.

NOTE: If you replace the immobilizer-keyless control unit, do the immobilizer registration Programming and Relearning.
