Part Two
Audio System Description
Stereo Amplifier Connector for Inputs and Outputs (With Premium Audio System)

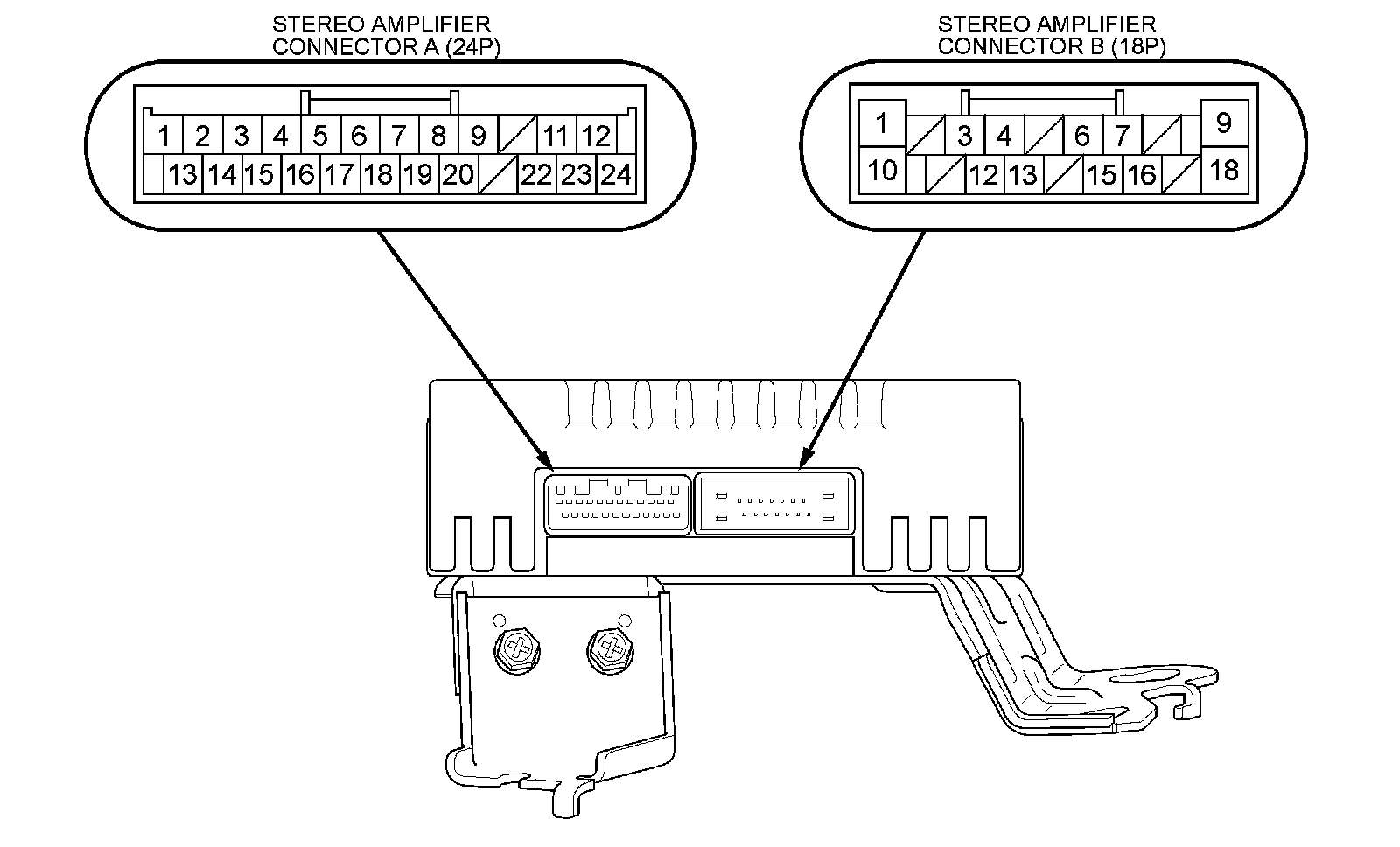

STEREO AMPLIFIER CONNECTOR A (24P)

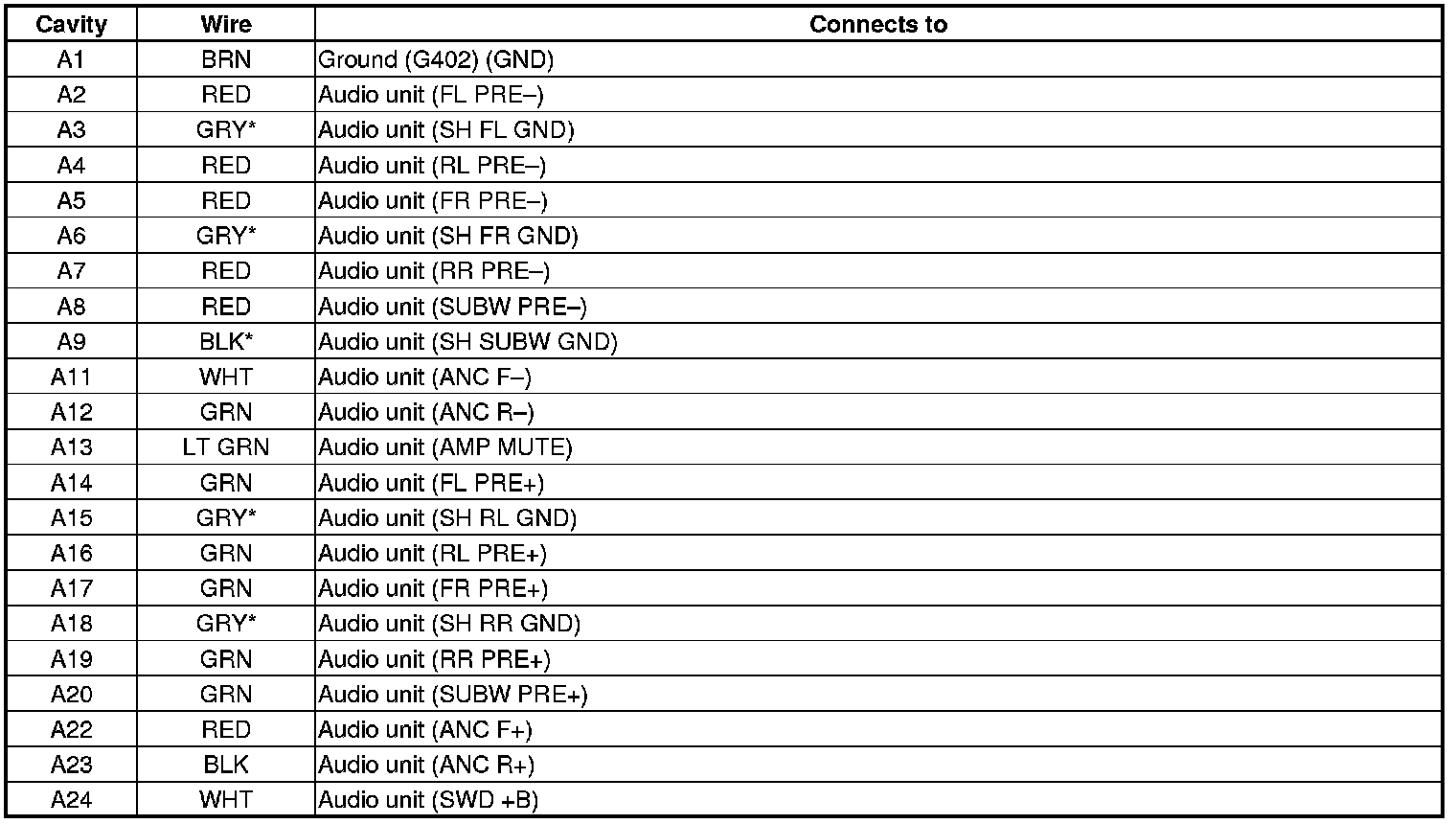

Stereo Amplifier Connector A (24P)
STEREO AMPLIFIER CONNECTOR B (18P)
Stereo Amplifier Connector B (18P)

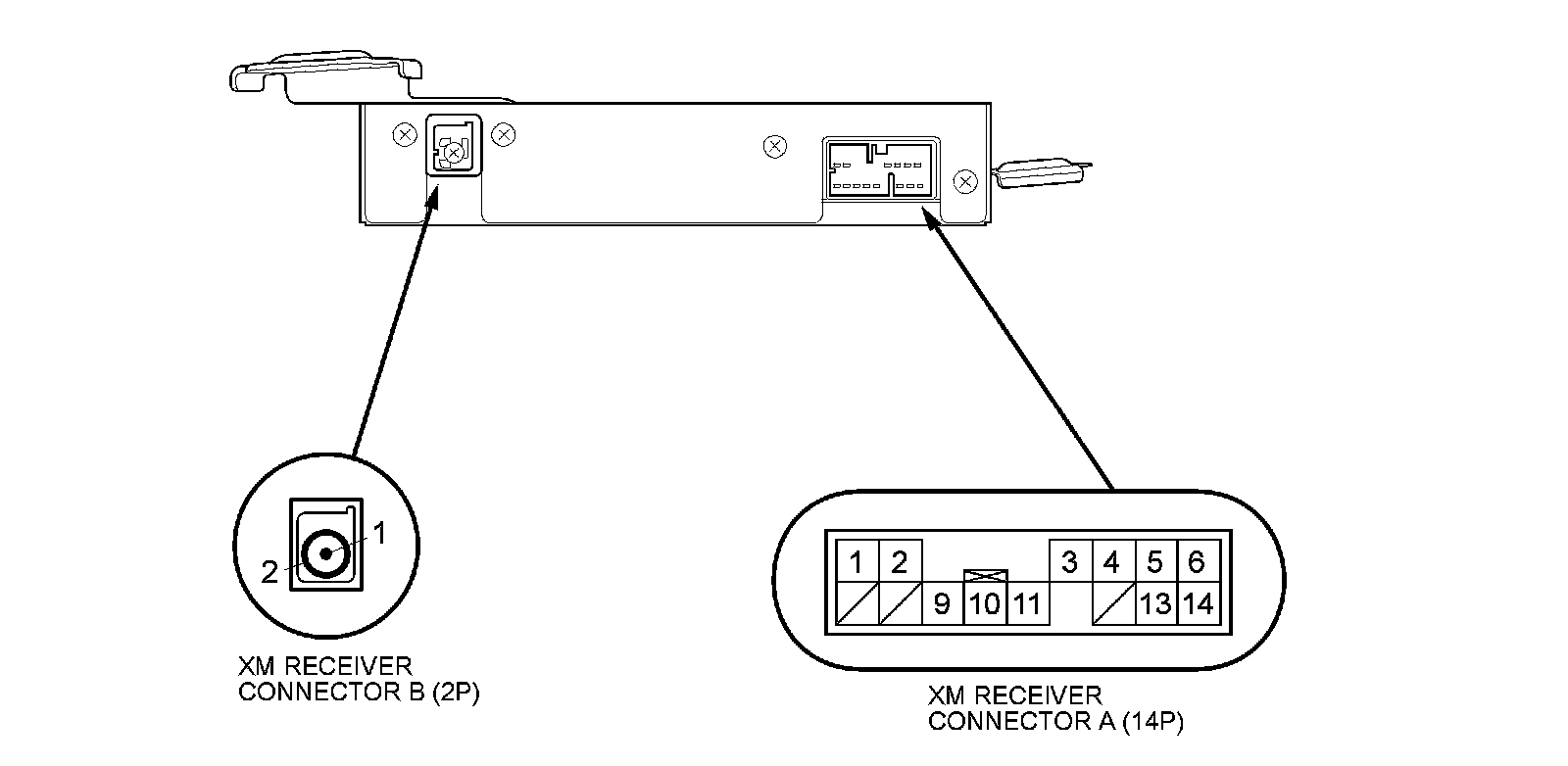

XM Receiver Connector for Inputs and Outputs (With Premium Audio System)
4-Door
2-Door
XM RECEIVER CONNECTOR A (14P)

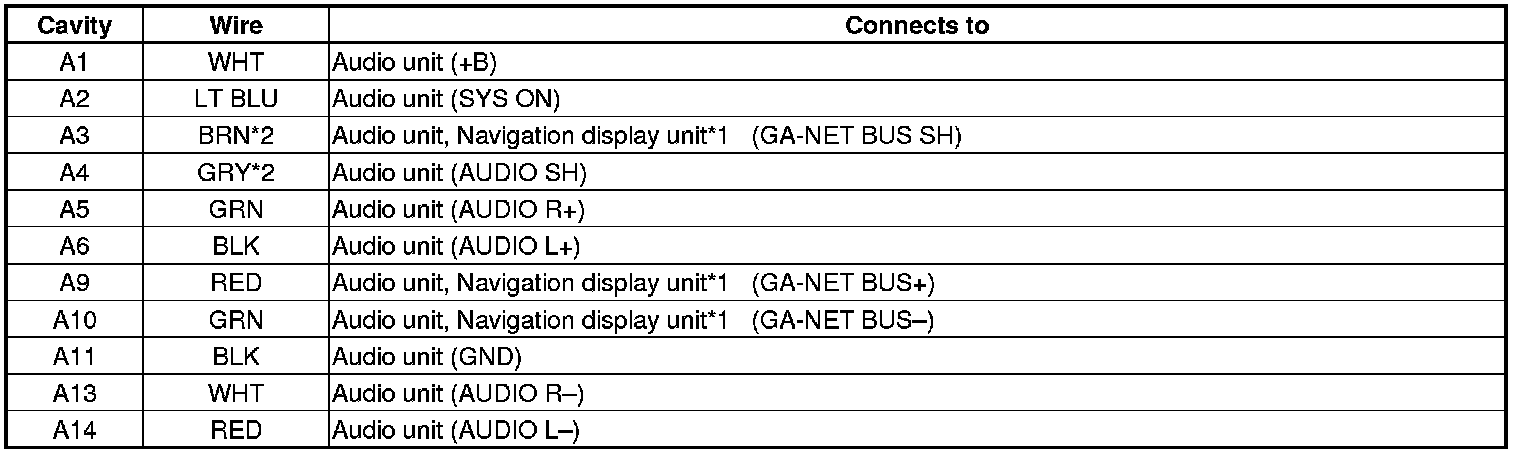

XM Receiver Connector A (14P)
XM RECEIVER CONNECTOR B (2P)
XM Receiver Connector B (2P)
Auxiliary Jack Assembly Connector for Inputs and Outputs

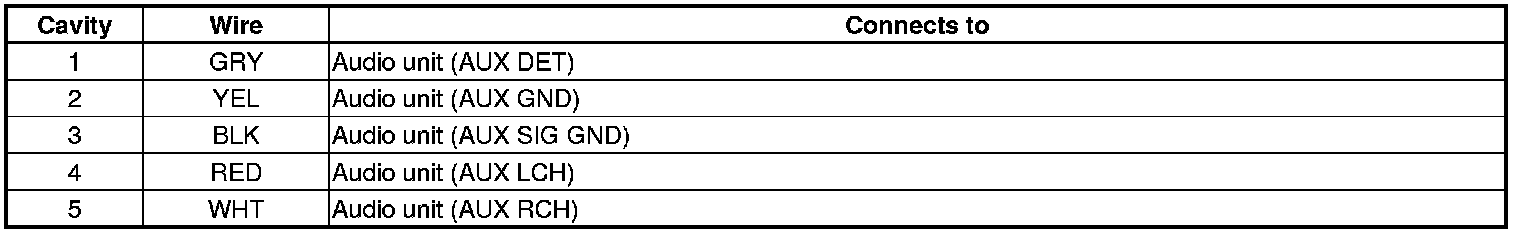

Auxiliary Jack Assembly 5P Connector
Active Noise Cancellation Microphone Connector for Inputs and Outputs

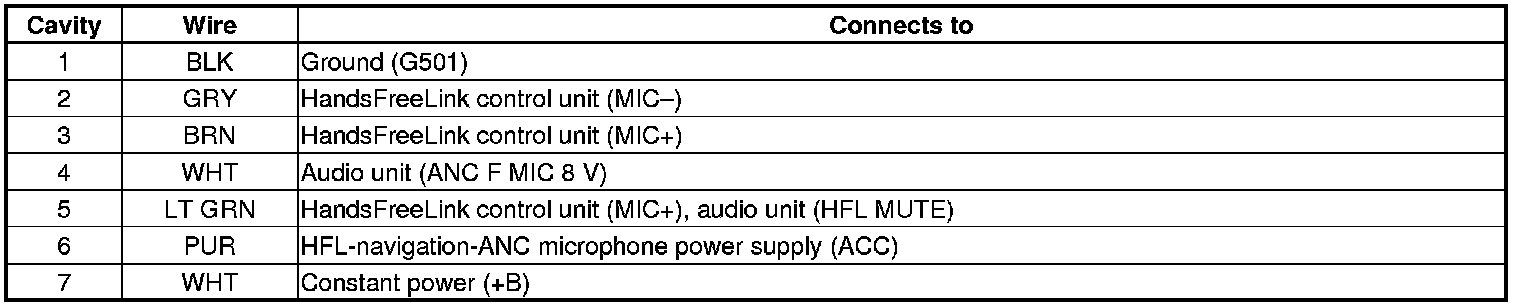

Front HFL-navigation-ANC Microphone 7P Connector (with navigation)

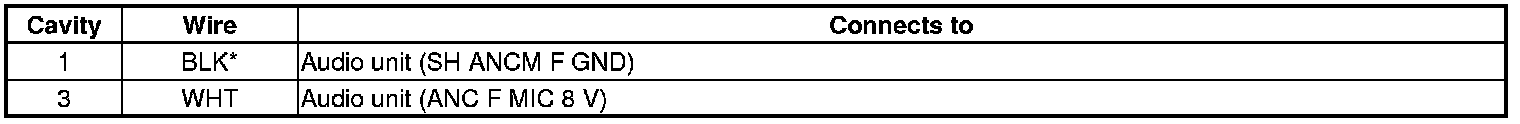

Front Active Noise Cancellation Microphone 3P Connector (without navigation 6 CD type)

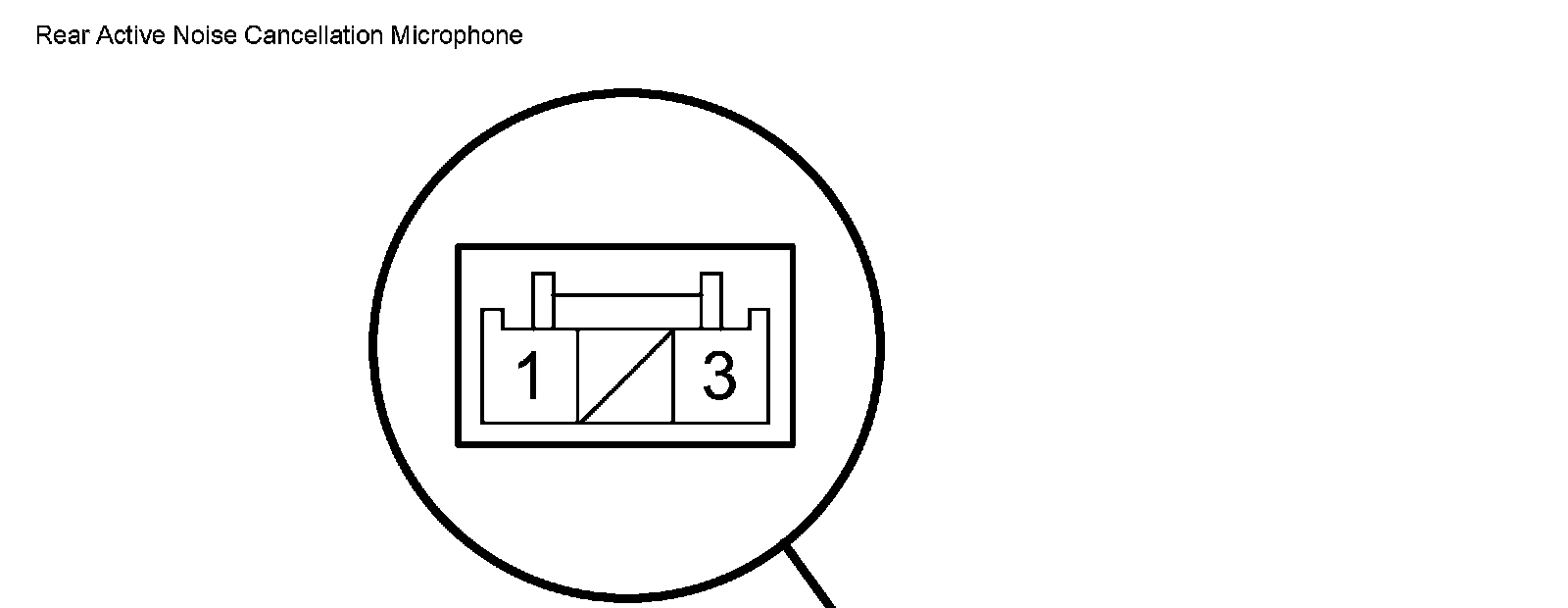

Rear Active Noise Cancellation Microphone 3P Connector
Audio Disc Changer Connector for Inputs and Outputs (With Navigation)

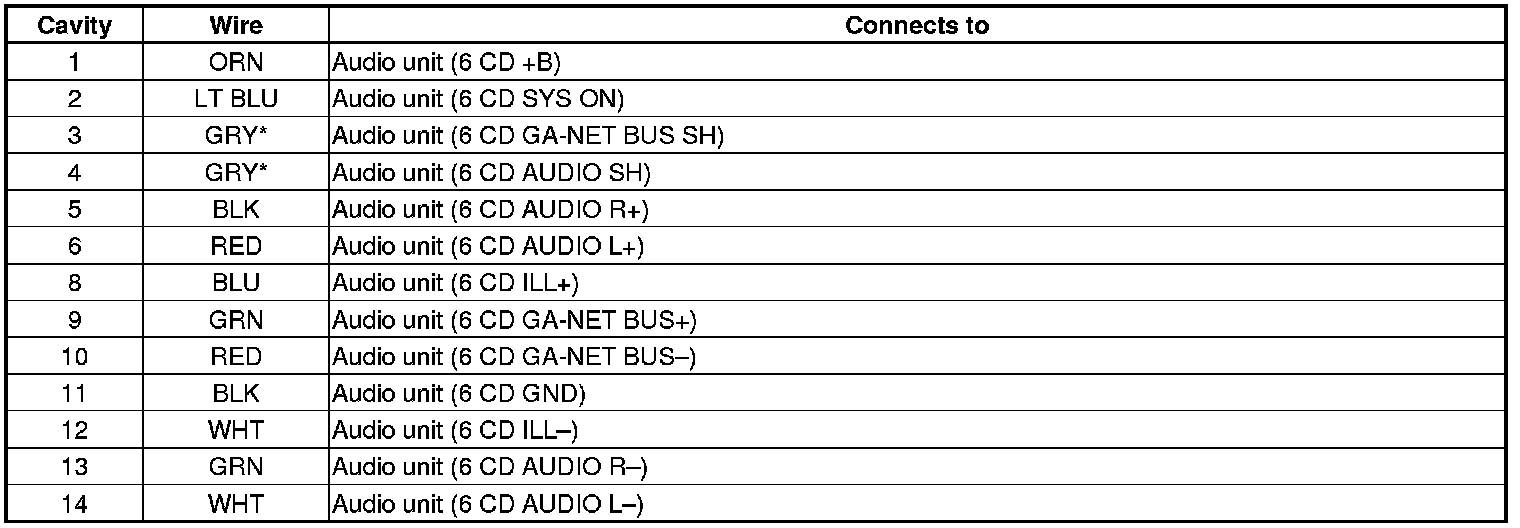

Audio Disc Changer 14P Connector
Speaker Crossover Network Control Unit Connector for Inputs and Outputs (With Premium Audio System)

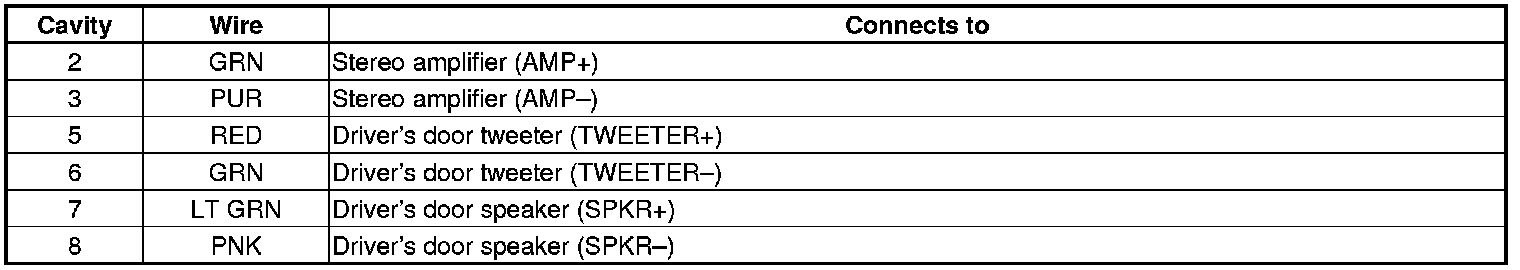

Driver's Door Speaker Crossover Network Control Unit 8P Connector

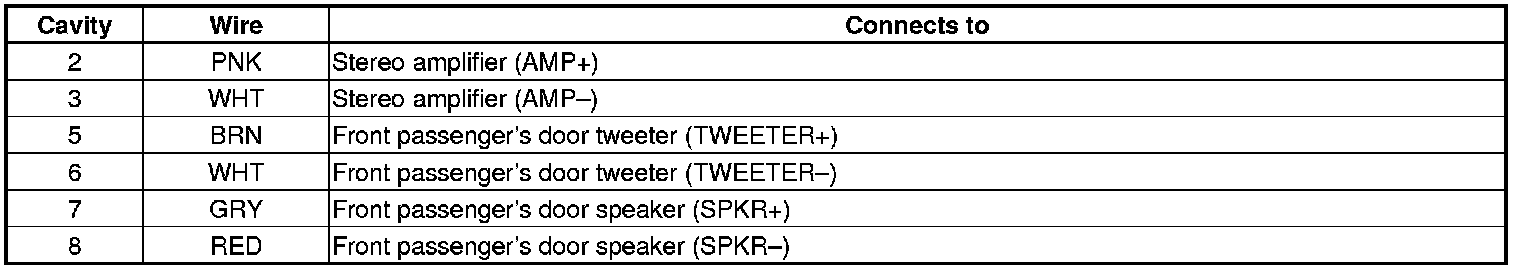

Front Passenger's Door Speaker Crossover Network Control Unit 8P Connector
Audio-HVAC Subdisplay Unit Connector for Inputs and Outputs (With Navigation)

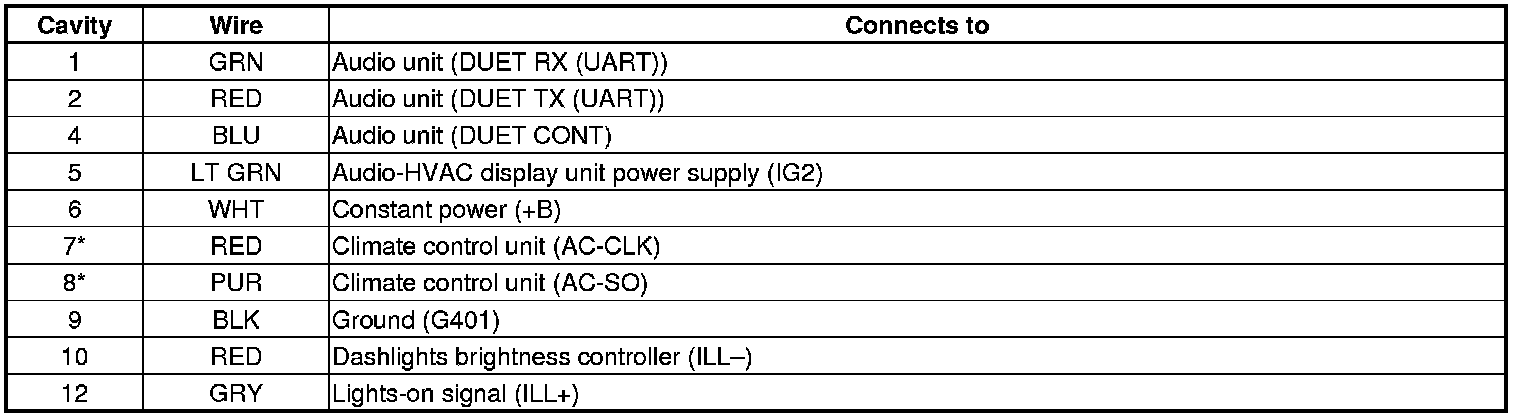

Audio-HVAC Subdisplay Unit 12P Connector
Audio-HVAC Display Unit Connector for Inputs and Outputs (Without Navigation)
Audio-HVAC Display Unit 12P Connector
