Front Seat Lumbar Support Replacement (2-Door)

Front Seat Lumbar Support Replacement

2-door Driver's Seat (For Some Models)

SRS components are located in this area. Review the SRS component locations SRS Component Location Index (2-Door) and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Take care not to kink the cable.
- Take care not to tear or damage the seat covers.

1. Remove the front seat Front Seat Removal/Installation.

2. Remove the seat-back cover/pad Front Seat-back Cover Replacement (2-Door).

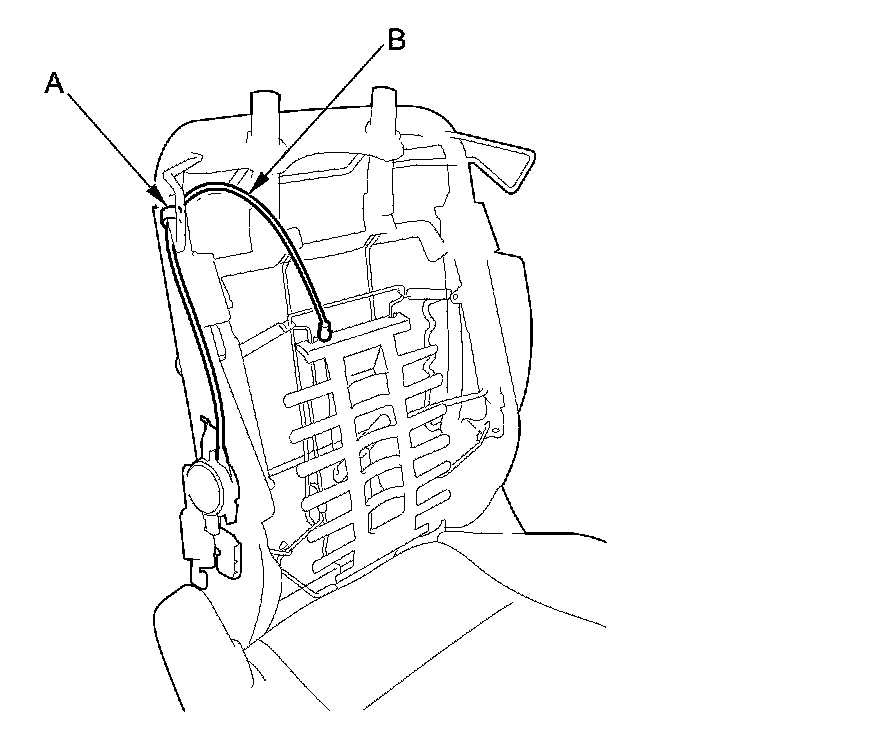

3. Remove the cable clamp (A) fastening the lumbar support cable (B).






4. Disconnect the lumbar support motor connector (A), and detach the harness clip (B). Remove the nuts, then remove the lumbar support motor (C).






5. Remove the lumbar support (A).

1. While pulling the lower part of the lumbar support to one side of the seat back frame, release it from the lower wire (B).

2. Release an opposite side of the lumbar support from the other lower wire.

3. Release the upper part of the lumbar support from both upper springs (C).





6. Remove the upper springs.

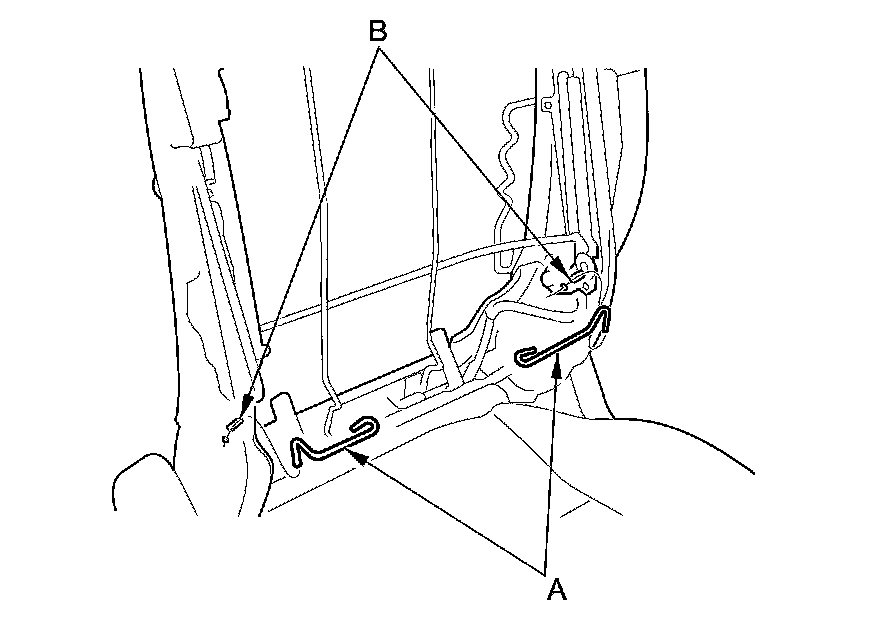

7. Release the lower wire (A) from both active head restraint links (B) of the seat-back frame.






8. Install the lumbar support in the reverse order of removal, and make sure the connector is plugged in properly.
