Front Seat Torsion Bar Replacement (2-Door)

Front Seat Torsion Bar Replacement

2-door Driver's Seat (Manual Height Adjustable Seat)

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the front seat Front Seat Removal/Installation.

2. Adjust the seat to its maximum height.

3. Release the hook strips from both sides and under of the seat cushion frame, then loosen the seat cushion cover.

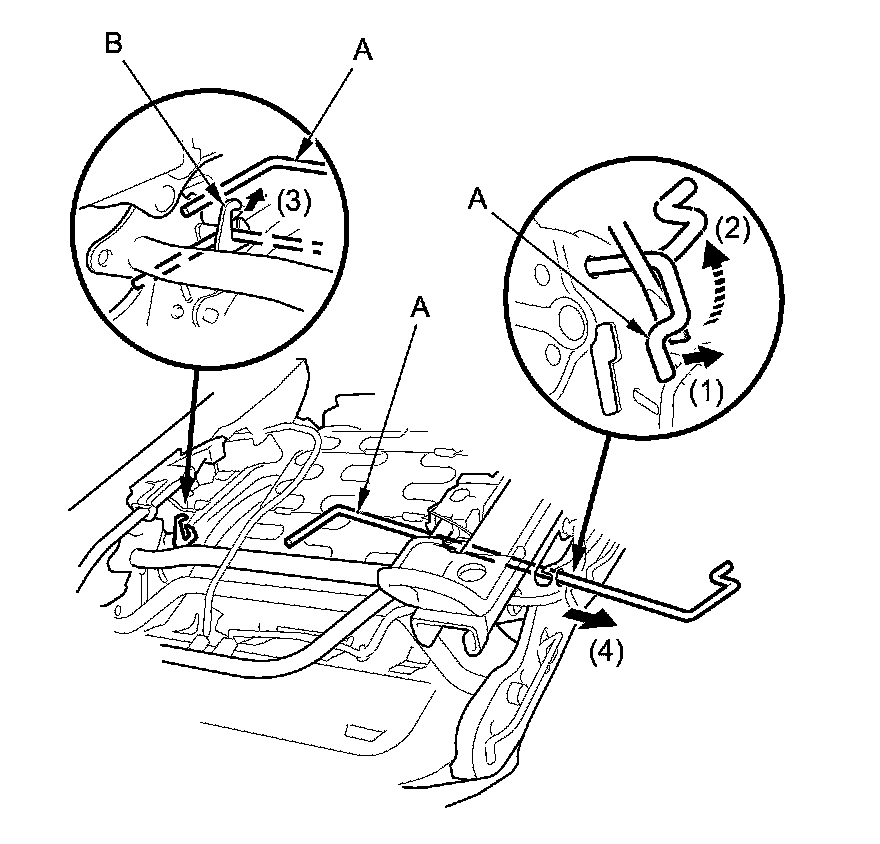

4. Lever a hooked shaped end of the torsion bar (A) down with a large flat-tip screwdriver.






5. While holding the torsion bar (A) twisted, pull out the end of the torsion bar of the seat frame, then carefully loosen the torsion bar.





6. Remove the other side end of the torsion bar from the hook (B), then remove the torsion bar from the seat frame.

7. Install the torsion bar in the reverse order of removal.
