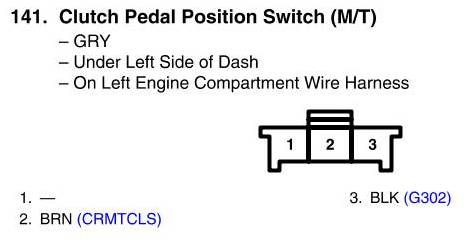

View 141 - Clutch Pedal Position Switch Connector View
View 141 - Clutch Pedal Position Switch Connector View
