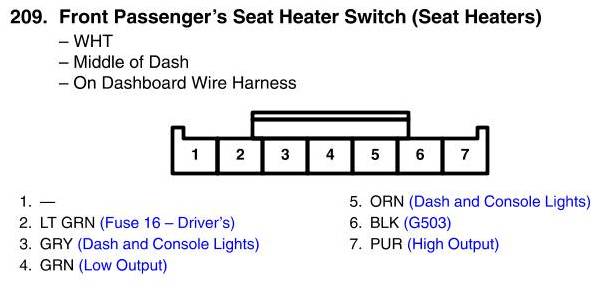

View 209 - Front Passenger's Seat Heater Switch Connector View (Seat Heaters)
View 209 - Front Passenger's Seat Heater Switch Connector View (Seat Heaters)
