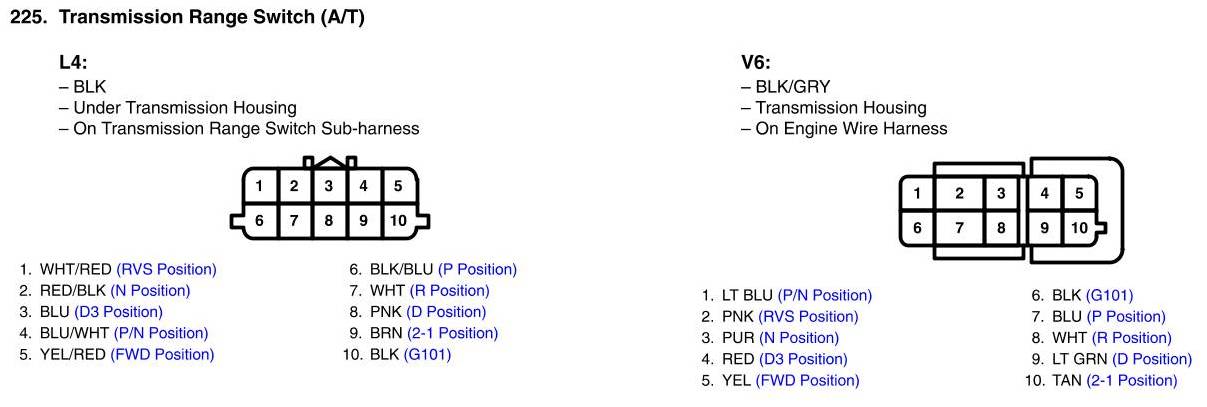

View 225 - Transmission Range Switch Connector View (A/T)
View 225 - Transmission Range Switch Connector View (A/T)
