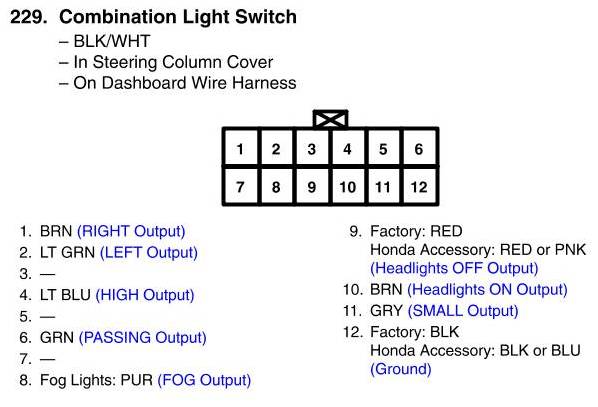

View 229 - Combination Light Switch Connector View
View 229 - Combination Light Switch Connector View
