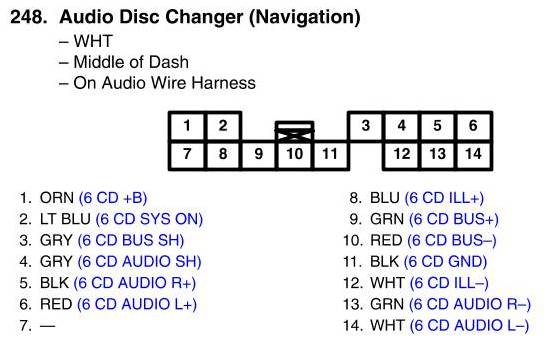

View 248 - Audio Disc Changer Connector View (Navigation)
View 248 - Audio Disc Changer Connector View (Navigation)
