Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 256 - C651 Connector View (Navigation)

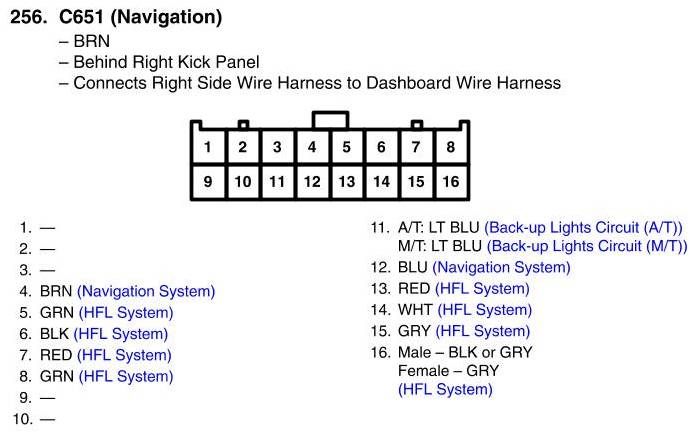

View 256 - C651 Connector View (Navigation)
