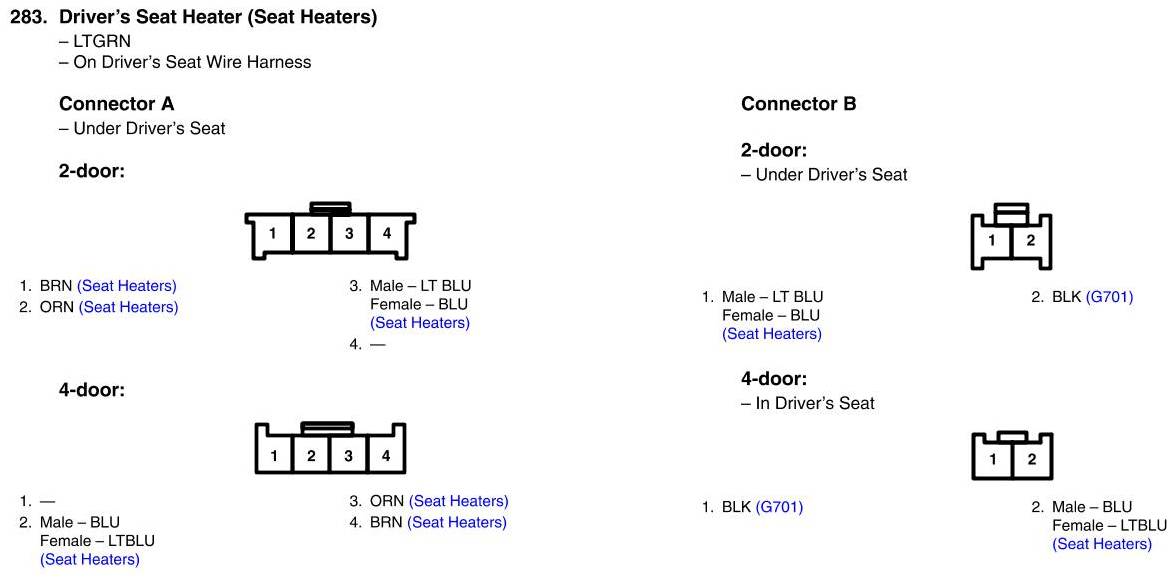

View 283 - Driver's Seat Heater Connector View (Seat Heaters)
View 283 - Driver's Seat Heater Connector View (Seat Heaters)
