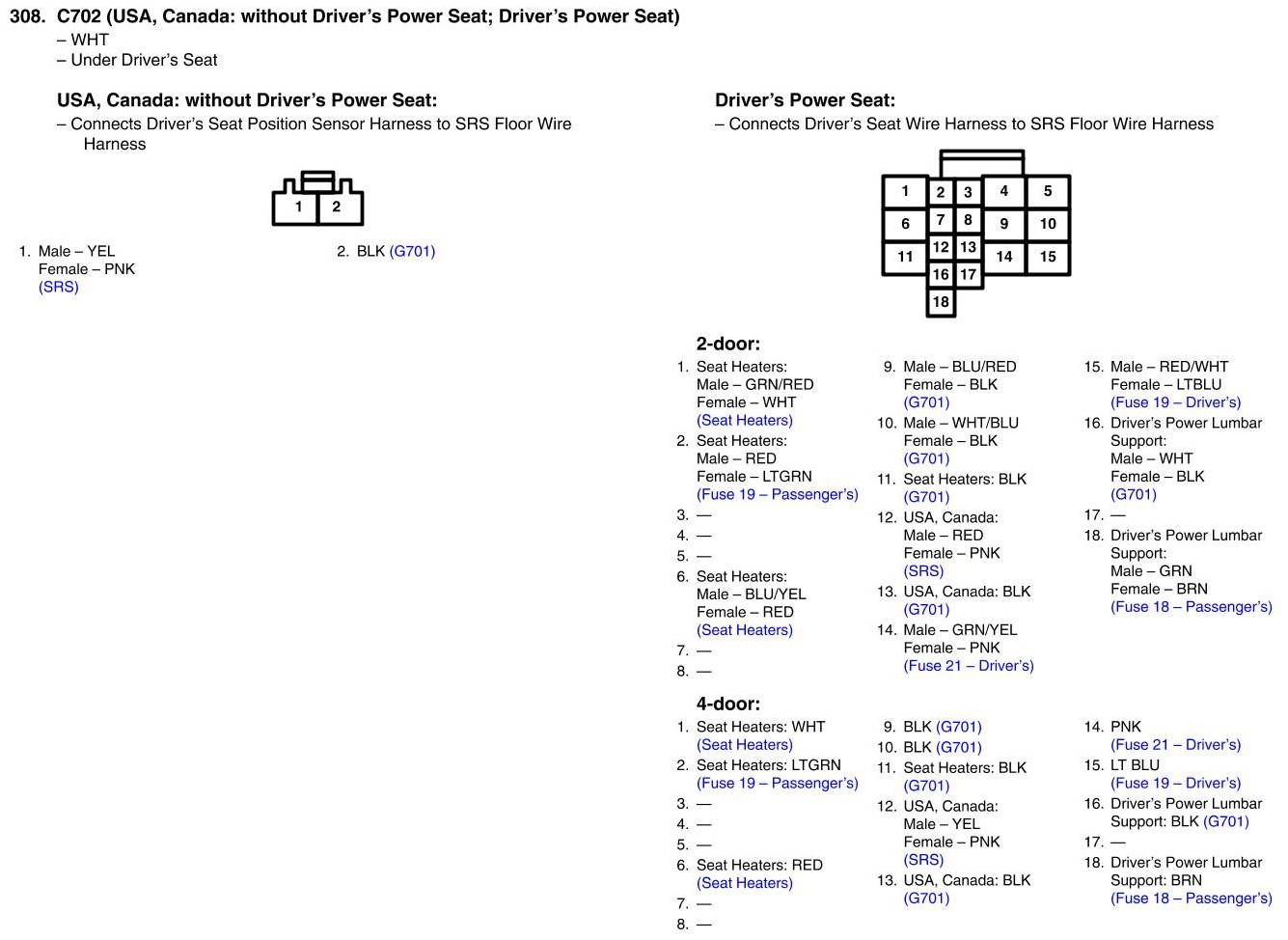

View 308 - C702 Connector View (USA, Canada: Without Driver's Power Seat; Driver's Power Seat)
View 308 - C702 Connector View (USA, Canada: Without Driver's Power Seat; Driver's Power Seat)
