Audio Wire Harness (With Premium Audio System and Navigation System)

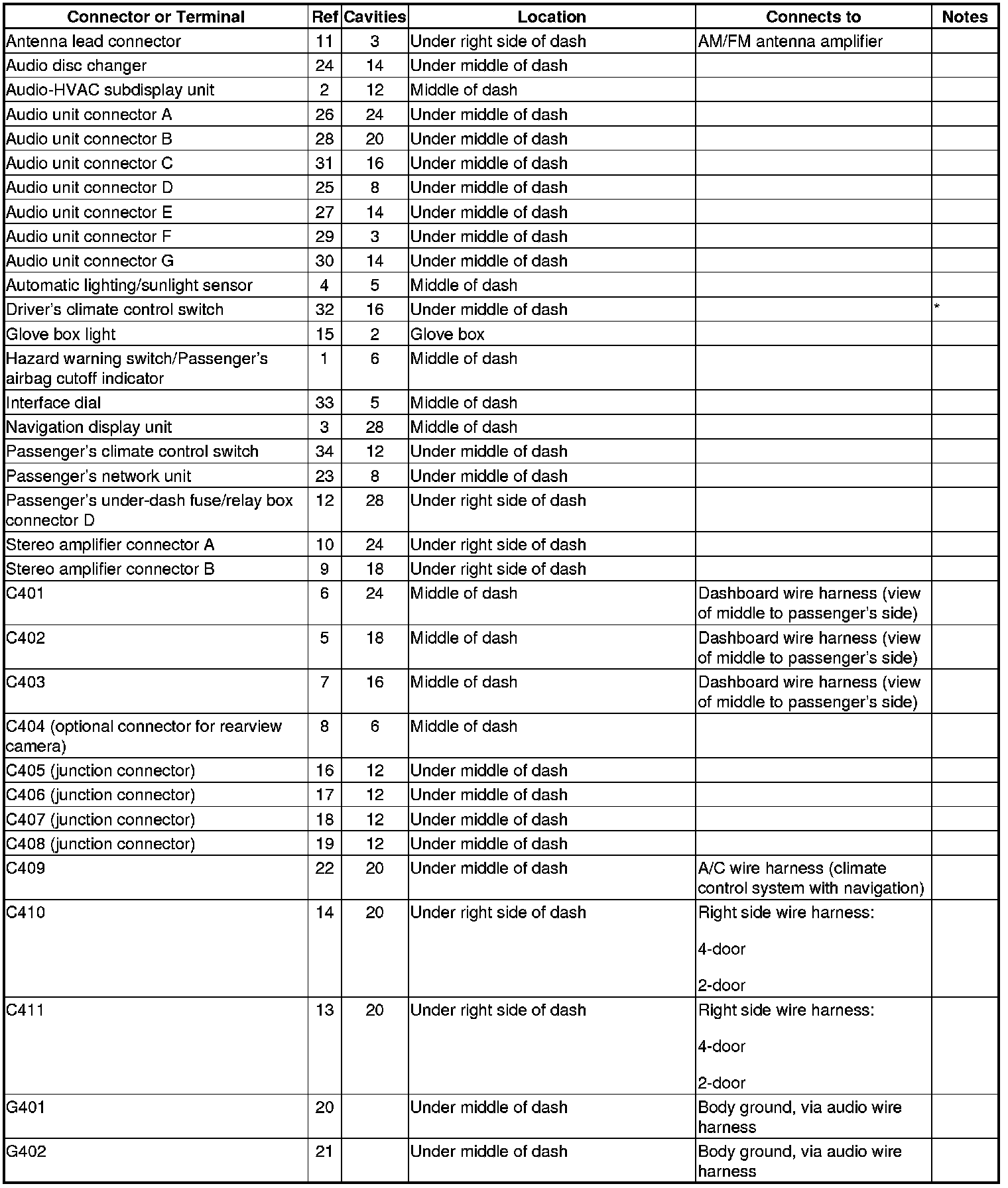

Connector and Harness Locations

Audio Wire Harness (With Premium Audio System and Navigation System)

Harness View
