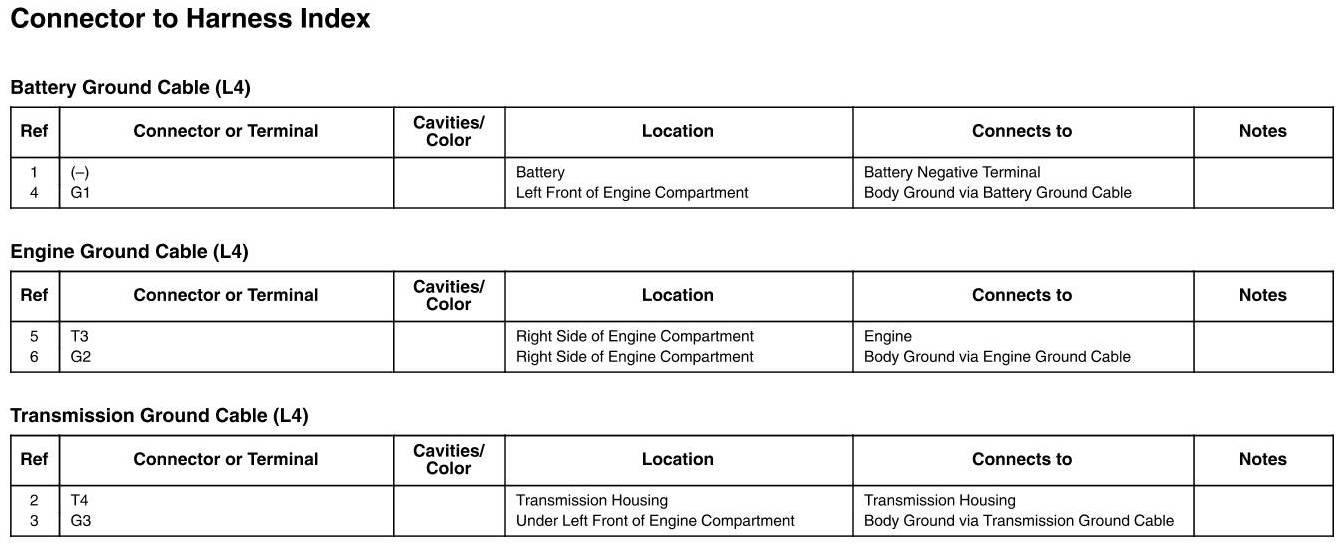

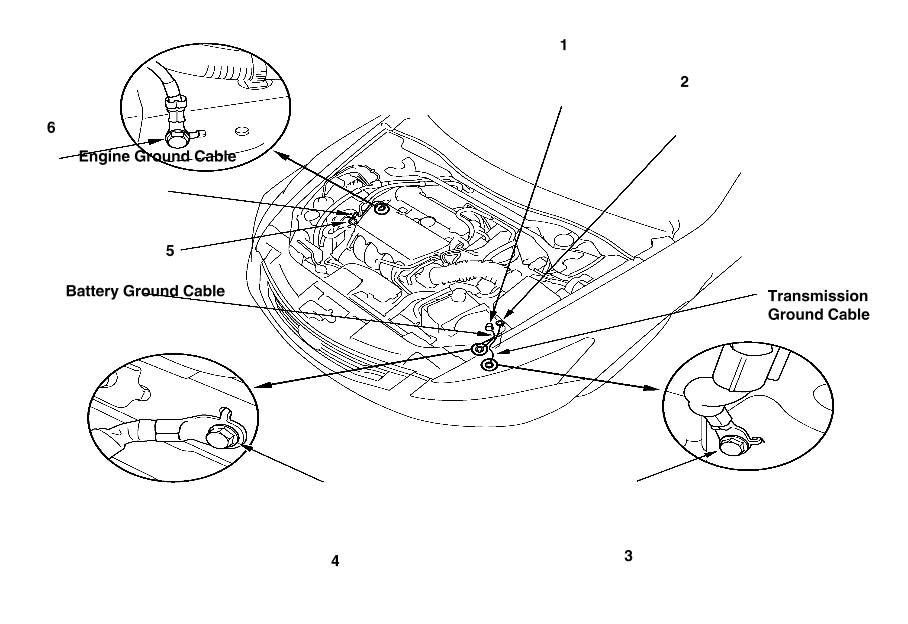

Battery Ground Cable, Engine Ground Cable, And Transmission Ground Cable Connector And Harness Locations
Battery Ground Cable, Engine Ground Cable, And Transmission Ground Cable Connector And Harness Locations
