Dashboard Wire Harness (View of Middle to Passenger's Side)

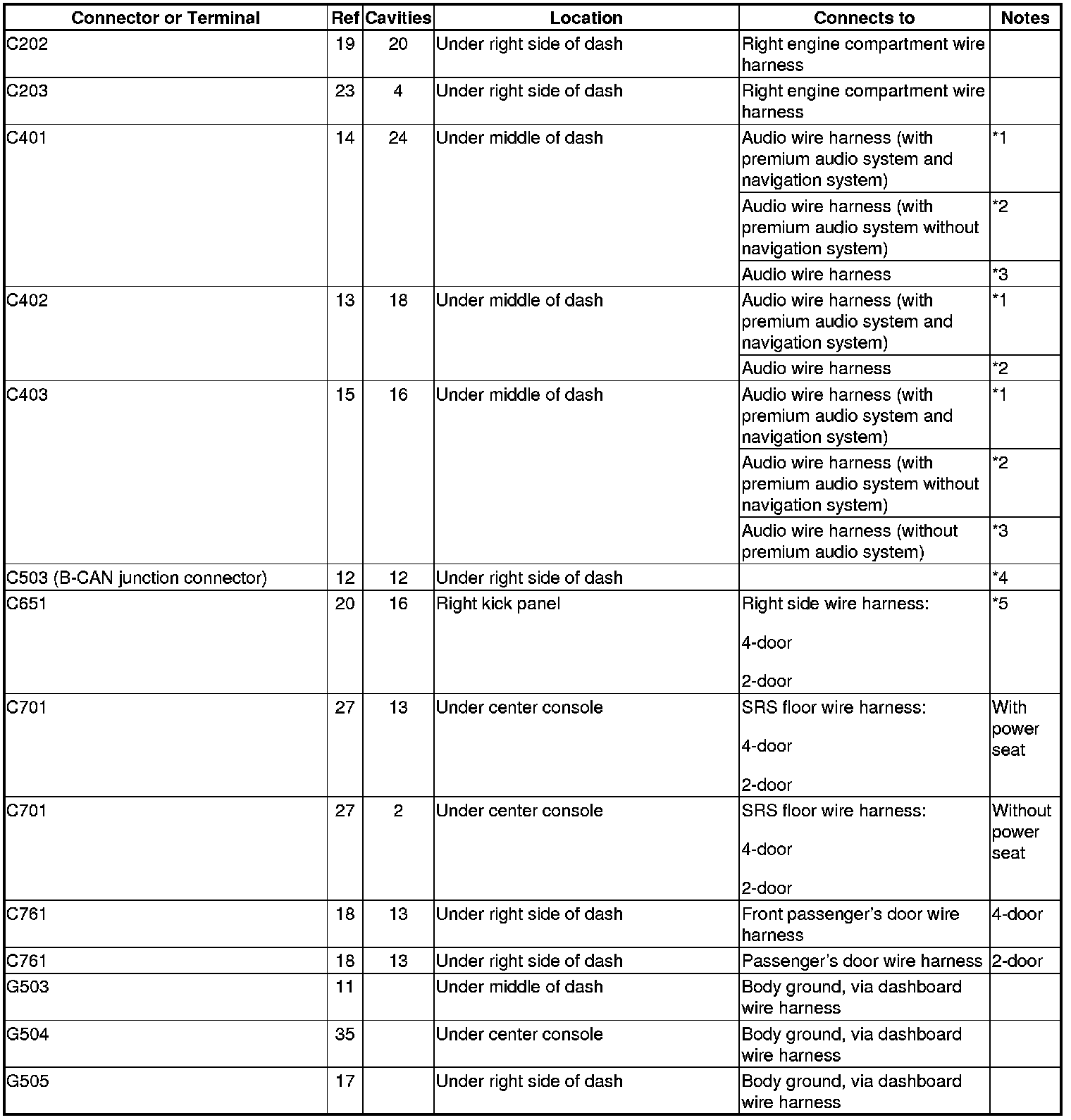

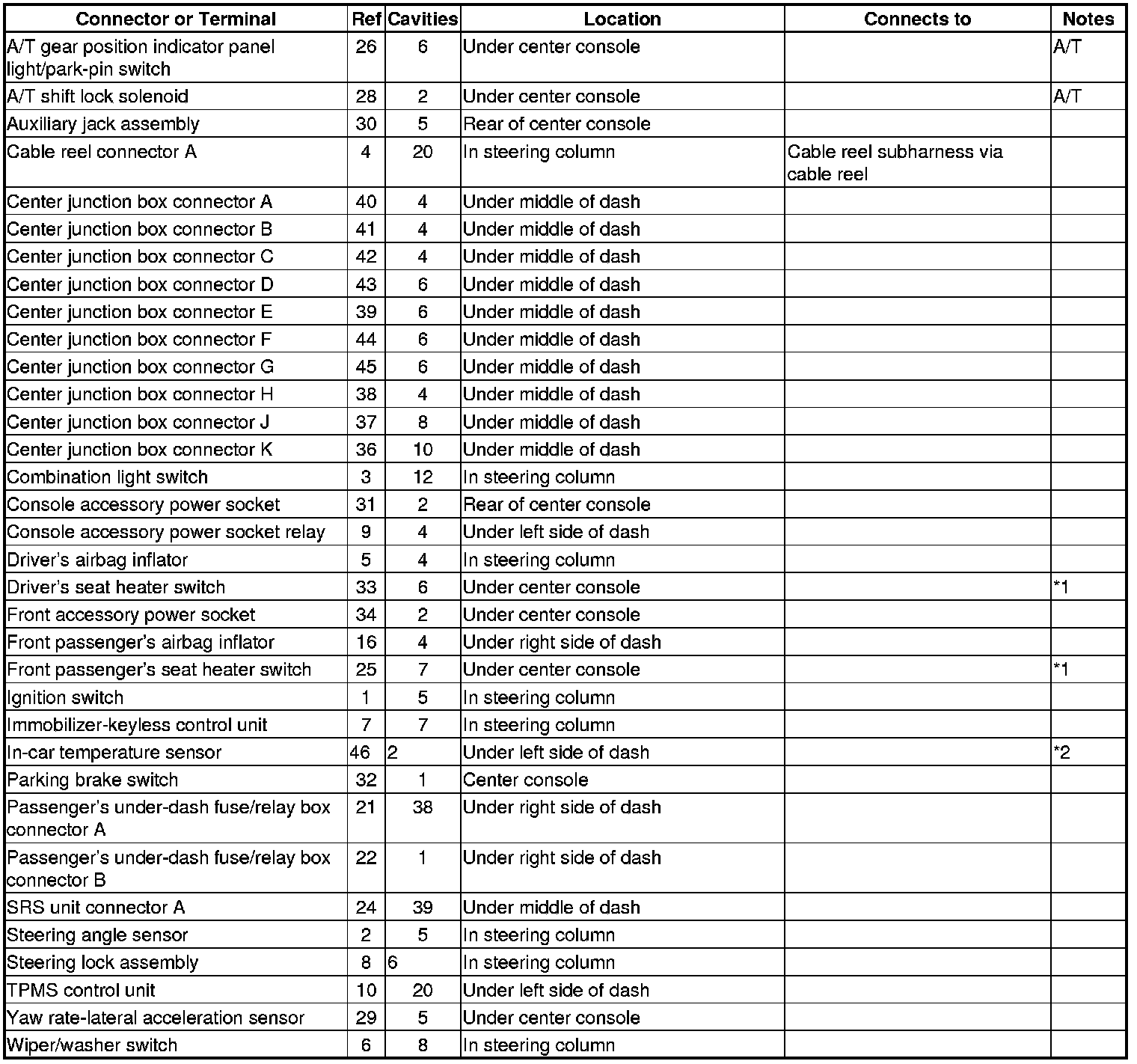

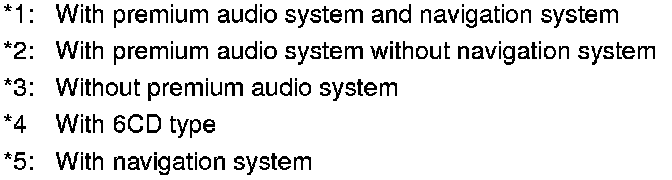

Connector and Harness Locations


Dashboard Wire Harness (View of middle to passenger's side)


















Harness View
