Driver's Seat Wire Harness (With Power Seat)
Driver's Seat Wire Harness (With Power Seat)

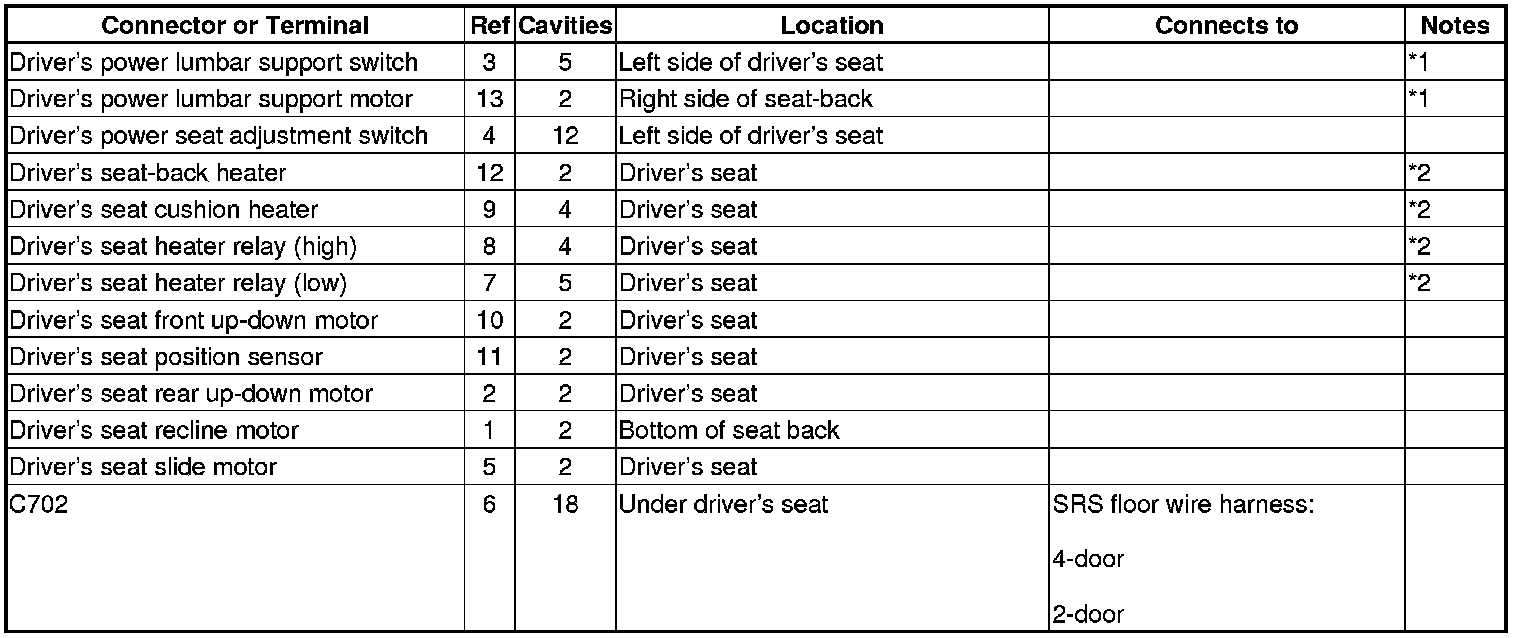

Connector and Harness Locations
Driver's Seat Wire Harness (With power seat)

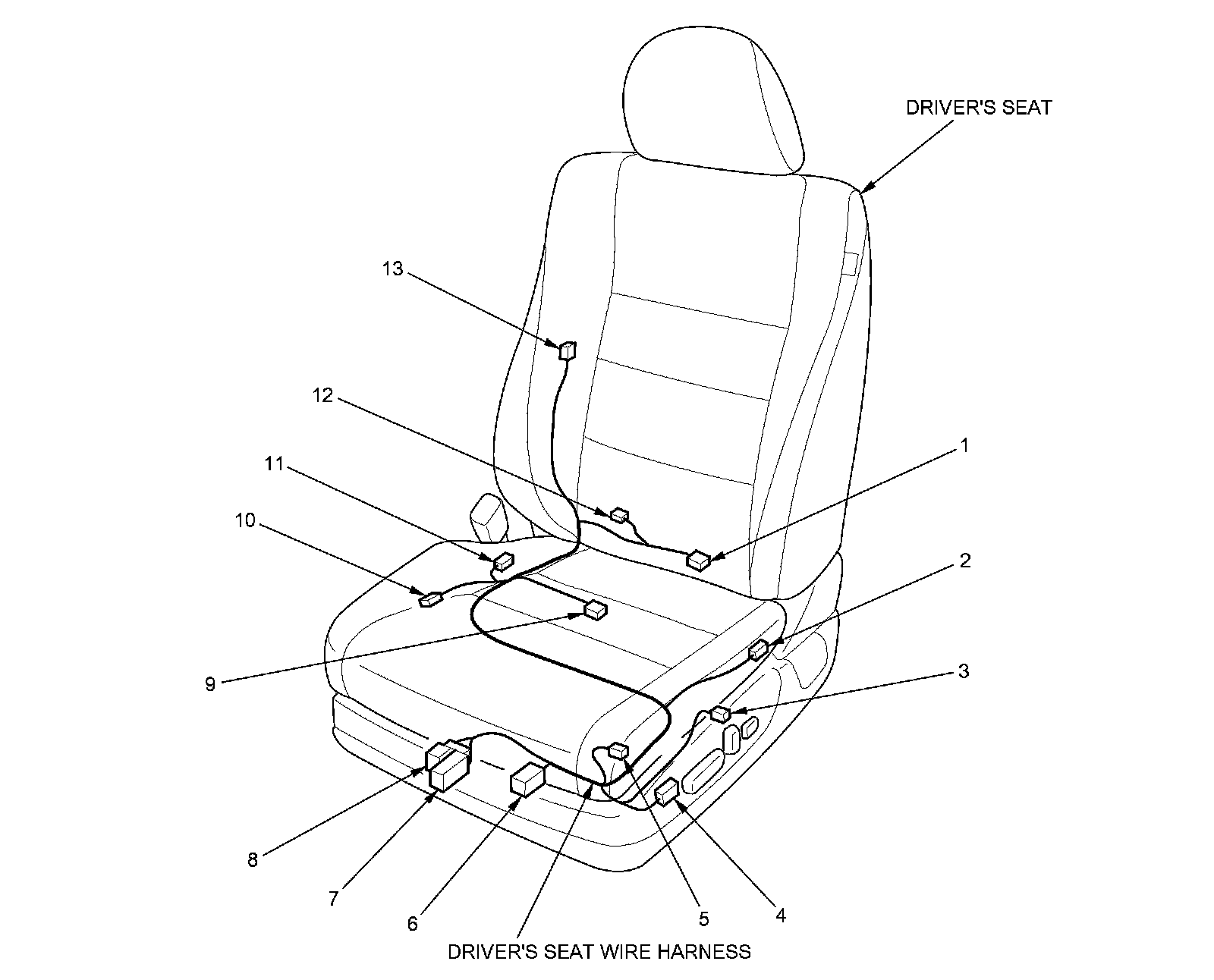

Harness View
