Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Wire Harness (M/T)
Engine Wire Harness (M/T)

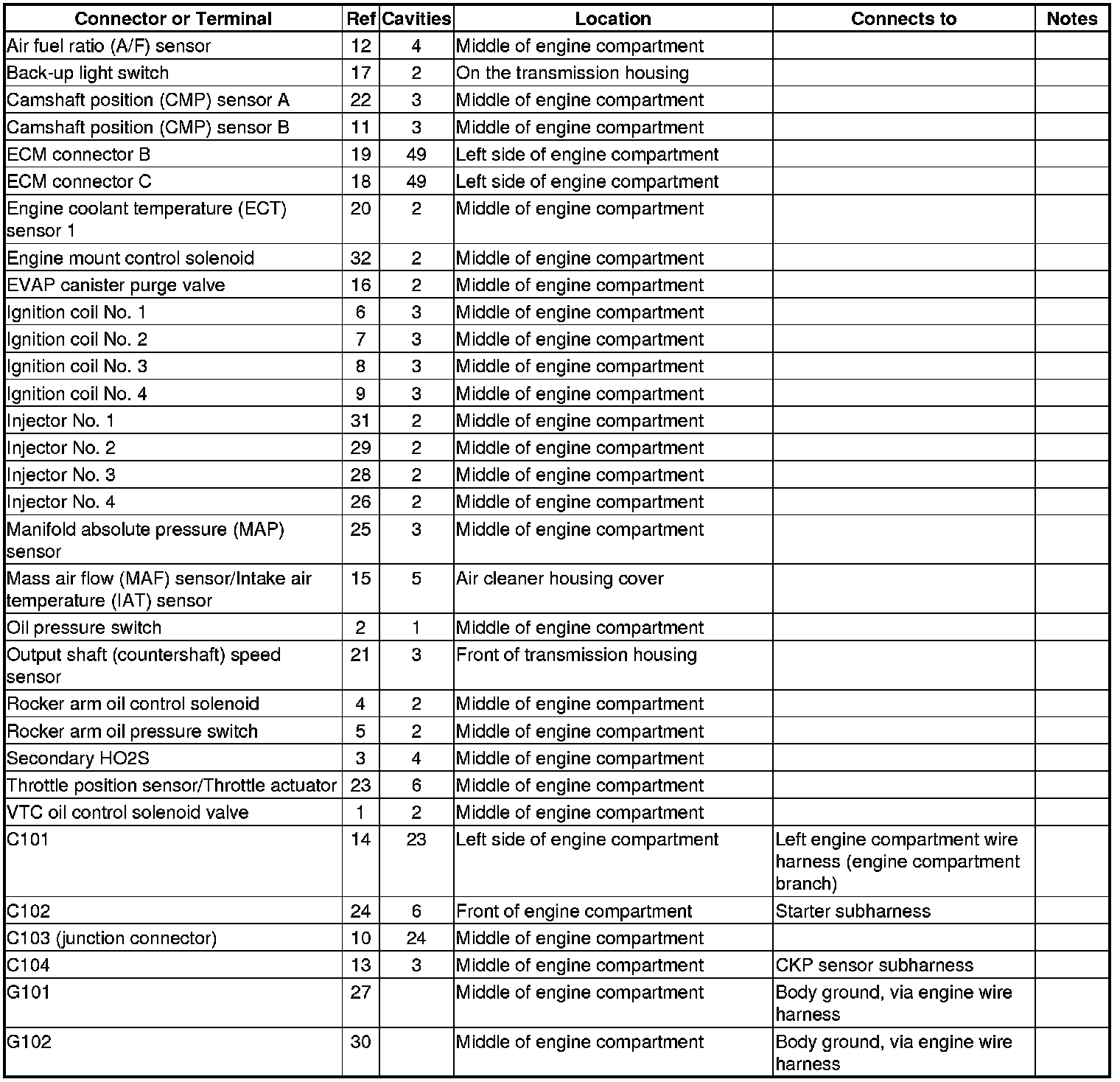

Connector and Harness Locations
Engine Wire Harness (M/T)

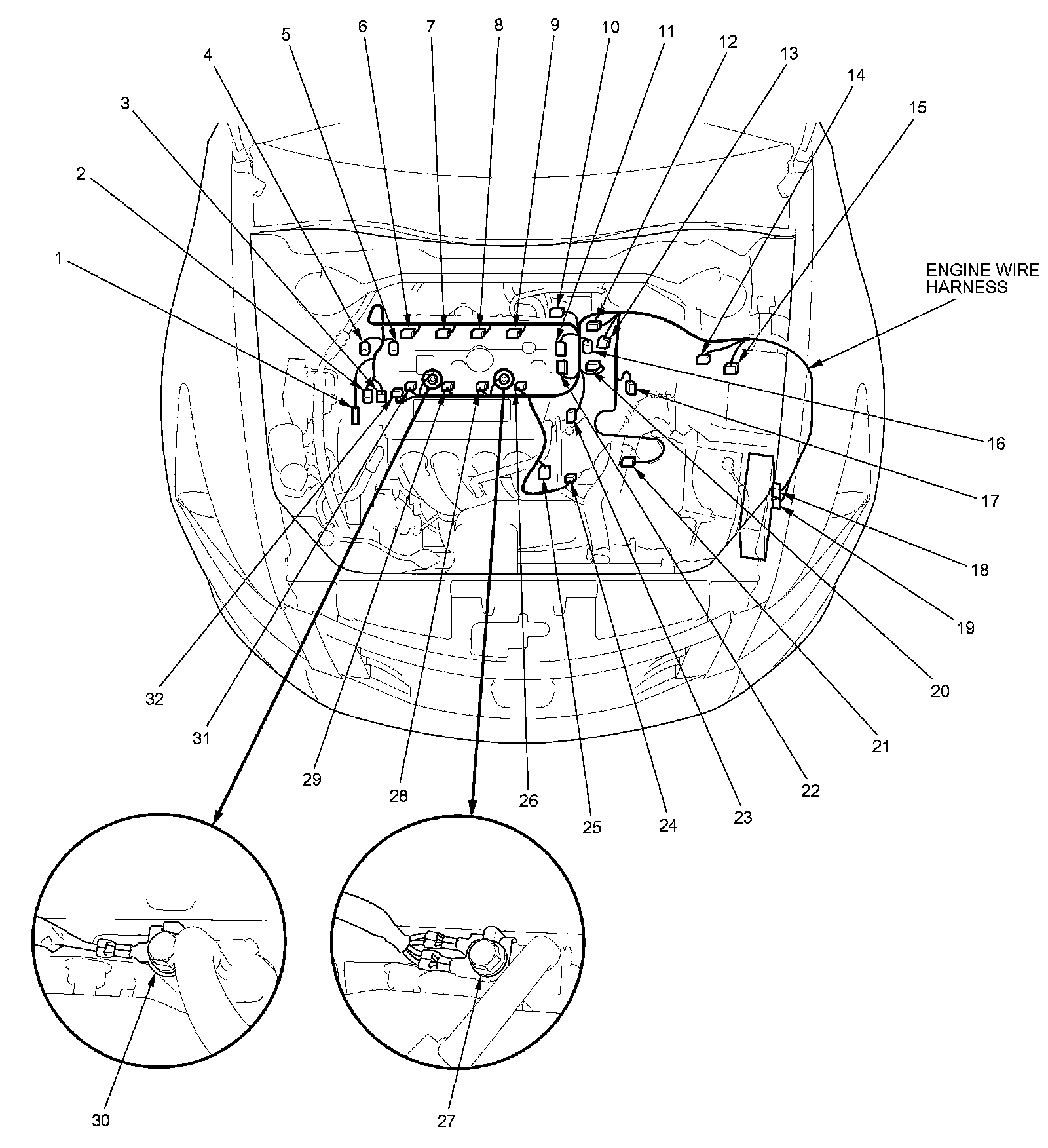

Harness View
