Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness Connector And Harness Locations (M/T)

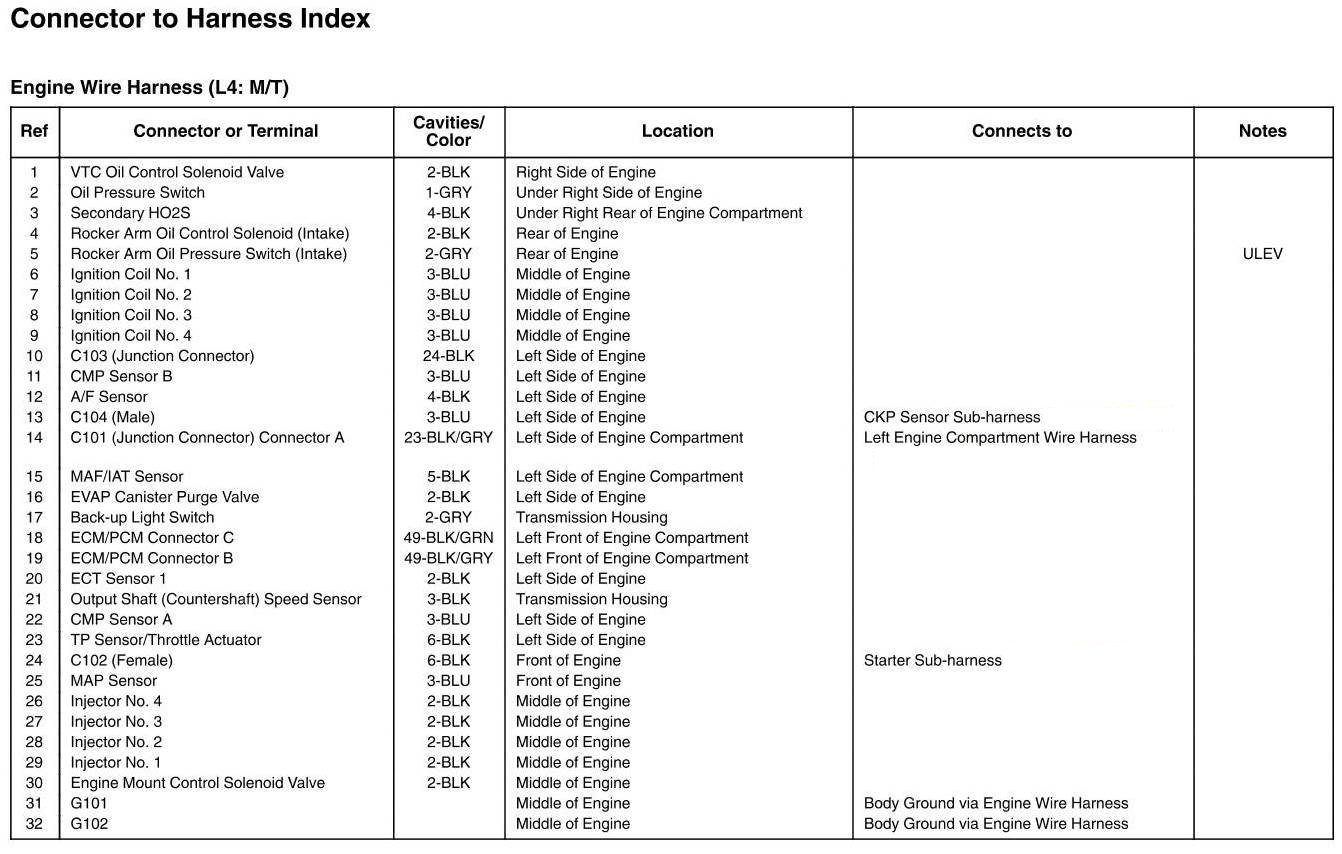

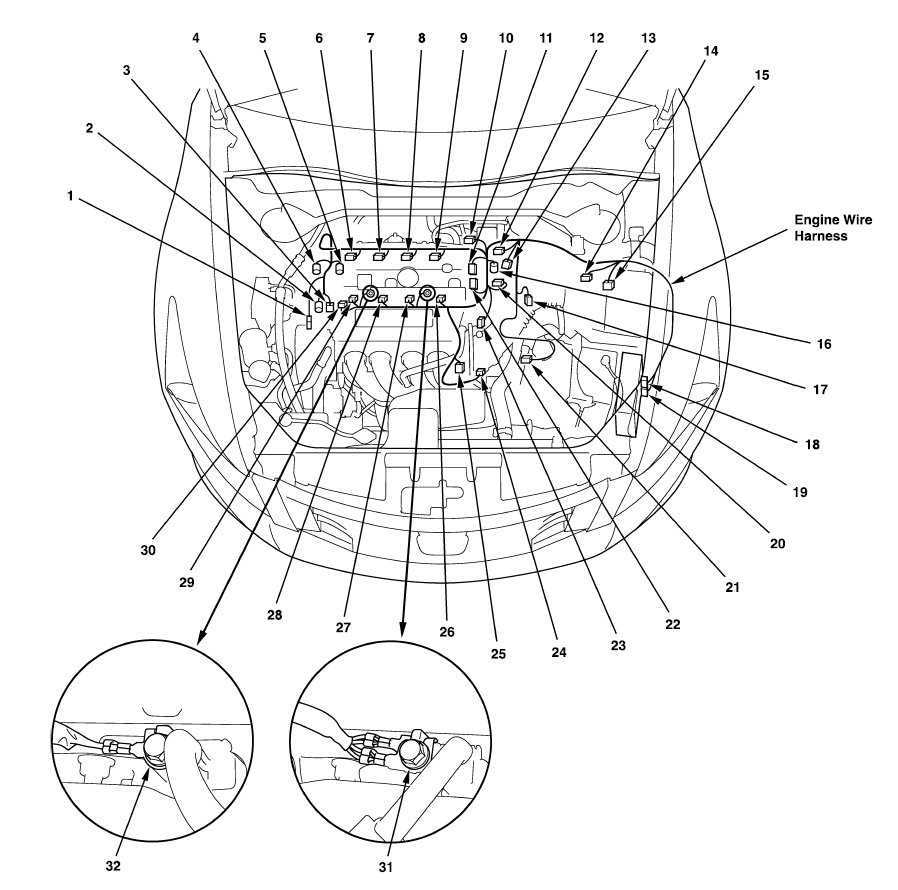

Engine Wire Harness Connector And Harness Locations (M/T)
