Front Passenger's Door Wire Harness (4-Door)
Front Passenger's Door Wire Harness (4-Door)

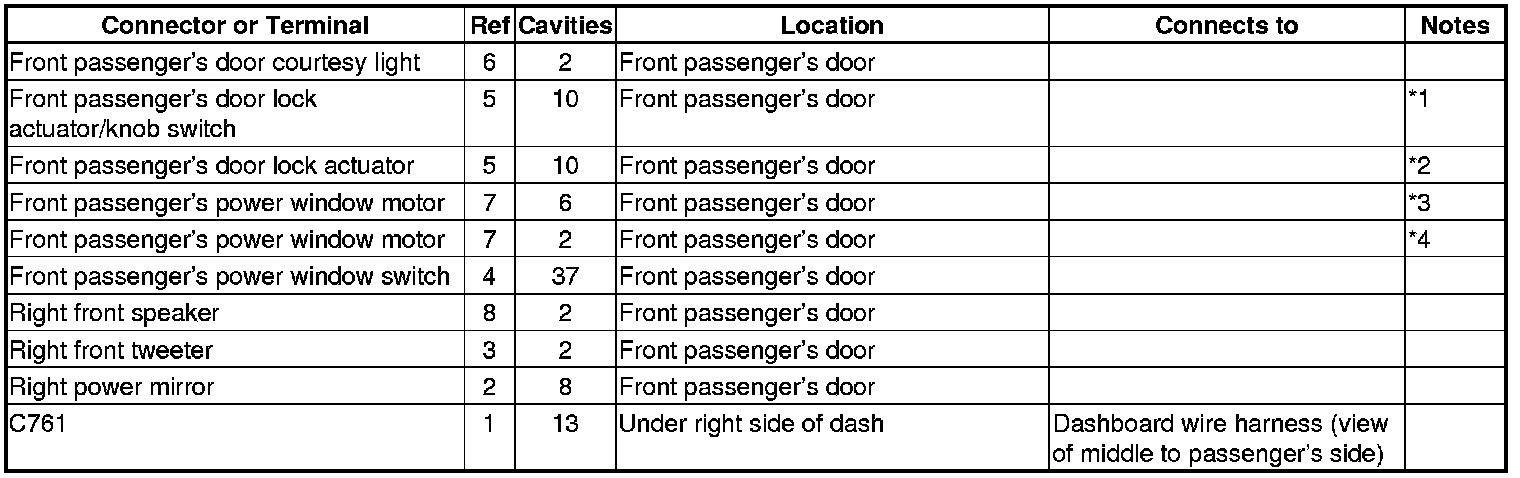

Connector and Harness Locations

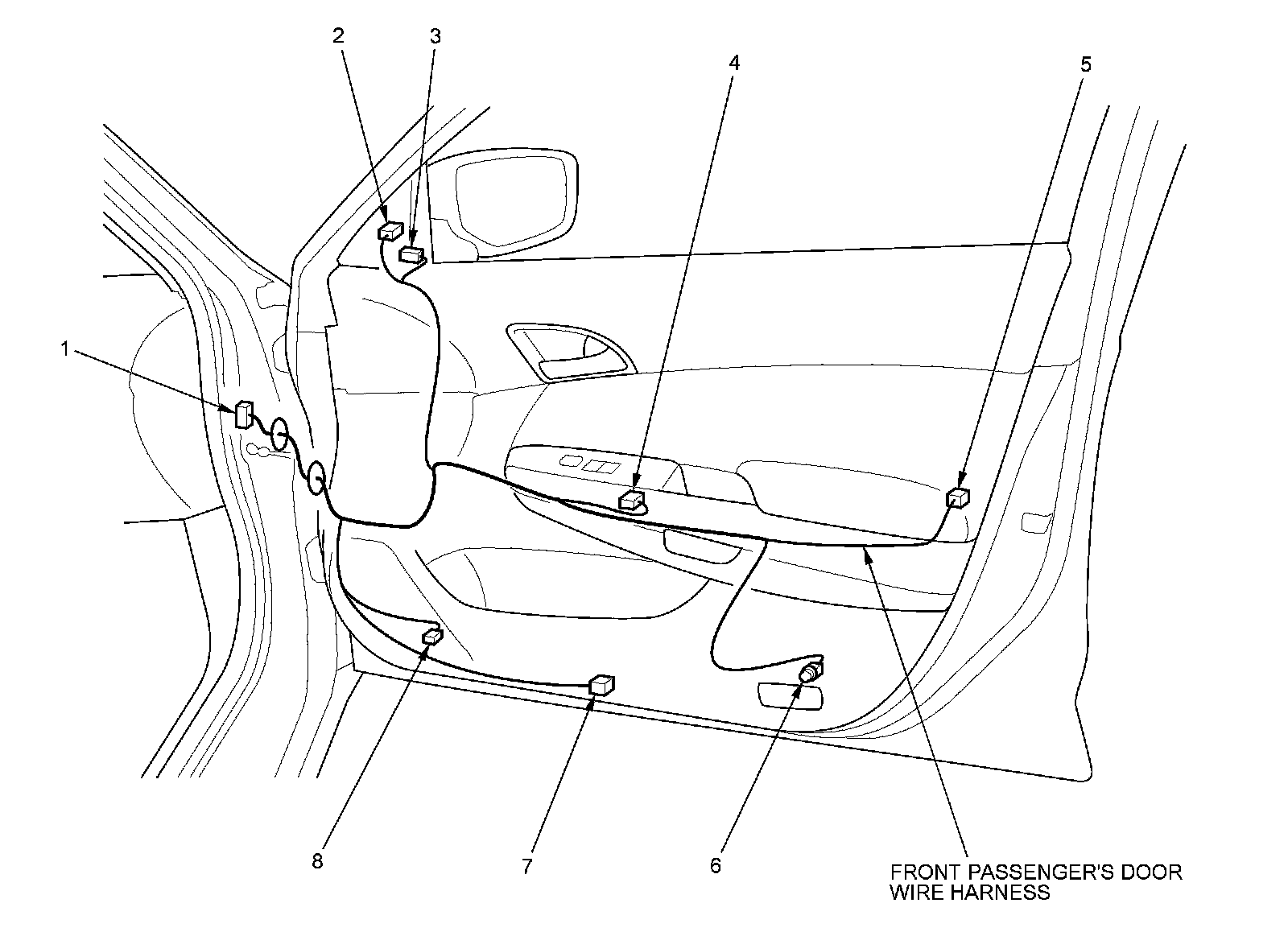

Front Passenger's Door Wire Harness (4-door)
Harness View
