Left Engine Compartment Wire Harness (Dash Branch)
Left Engine Compartment Wire Harness (Dash Branch)

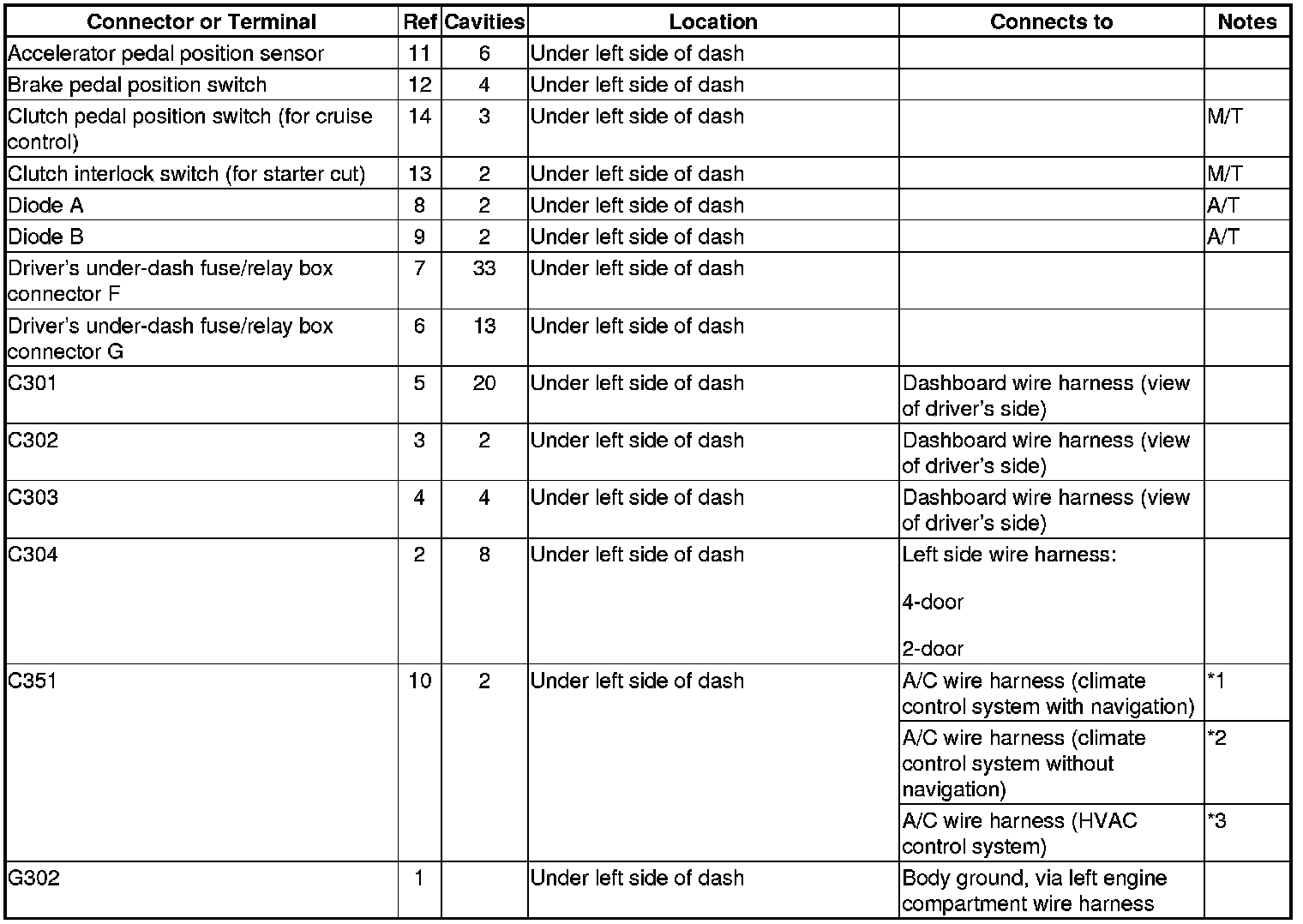

Connector and Harness Locations
Left Engine Compartment Wire Harness (Dash branch)

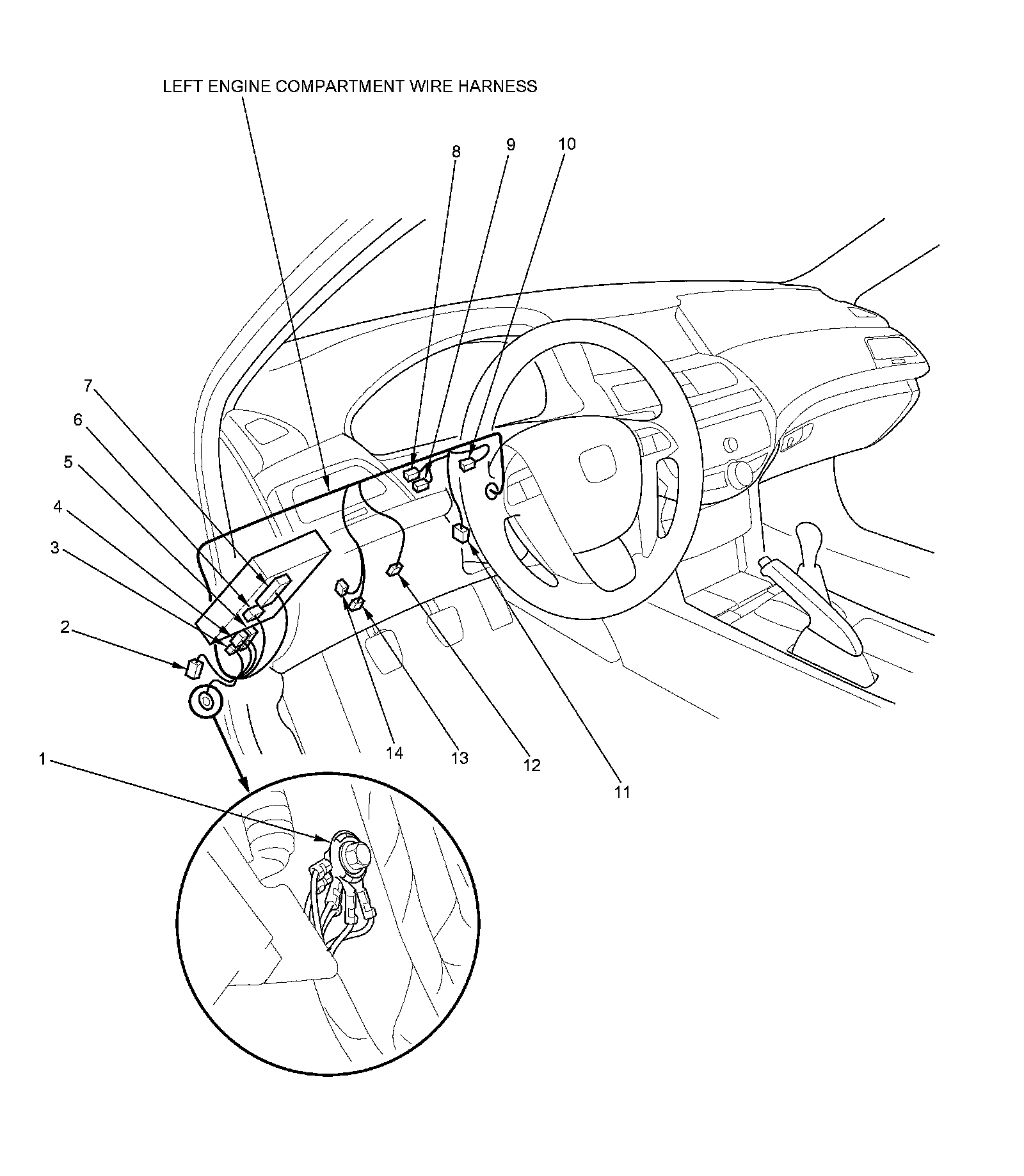

Harness View
