Left Engine Compartment Wire Harness (Engine Compartment Branch)

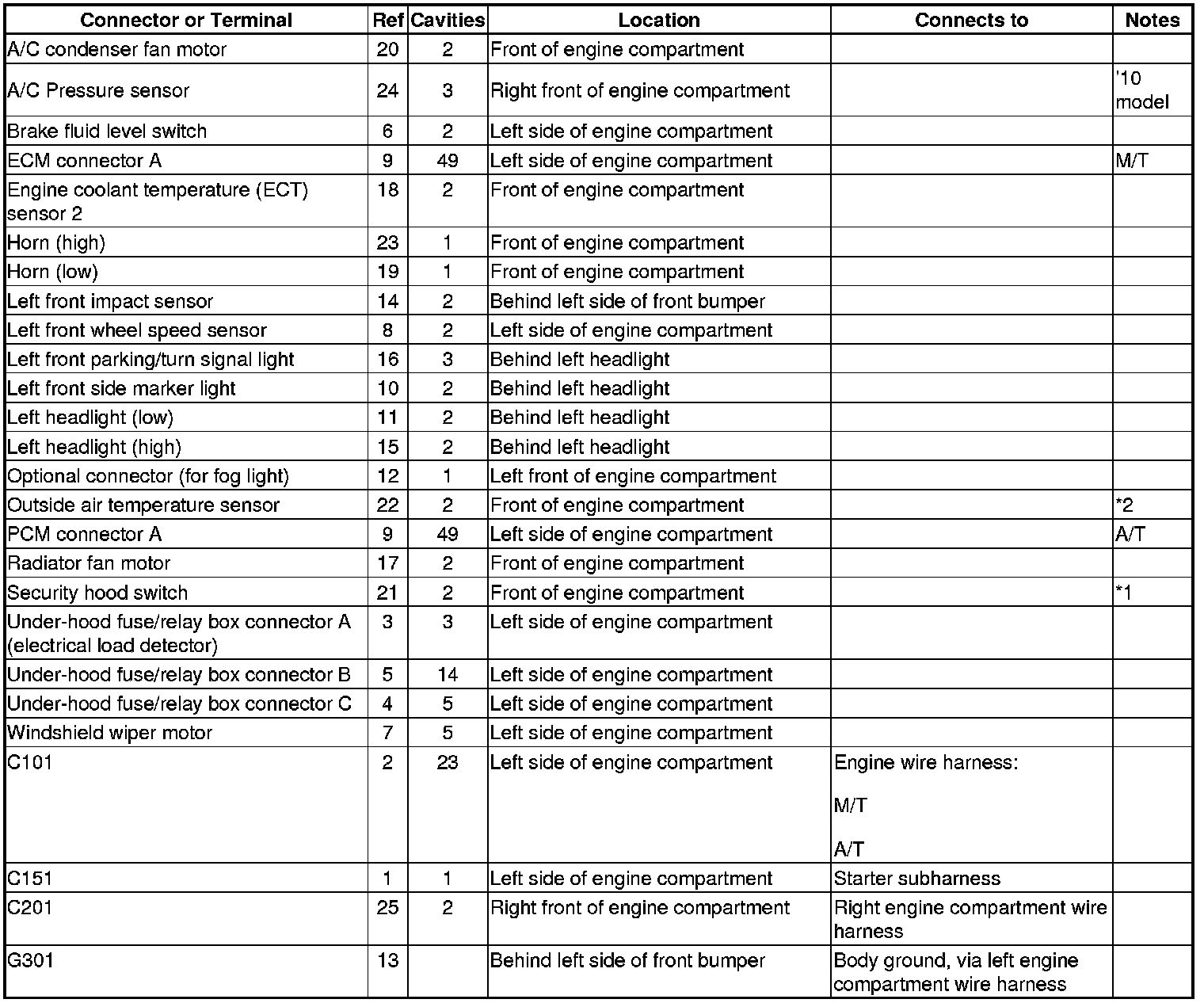

Connector and Harness Locations


Left Engine Compartment Wire Harness (Engine compartment branch)

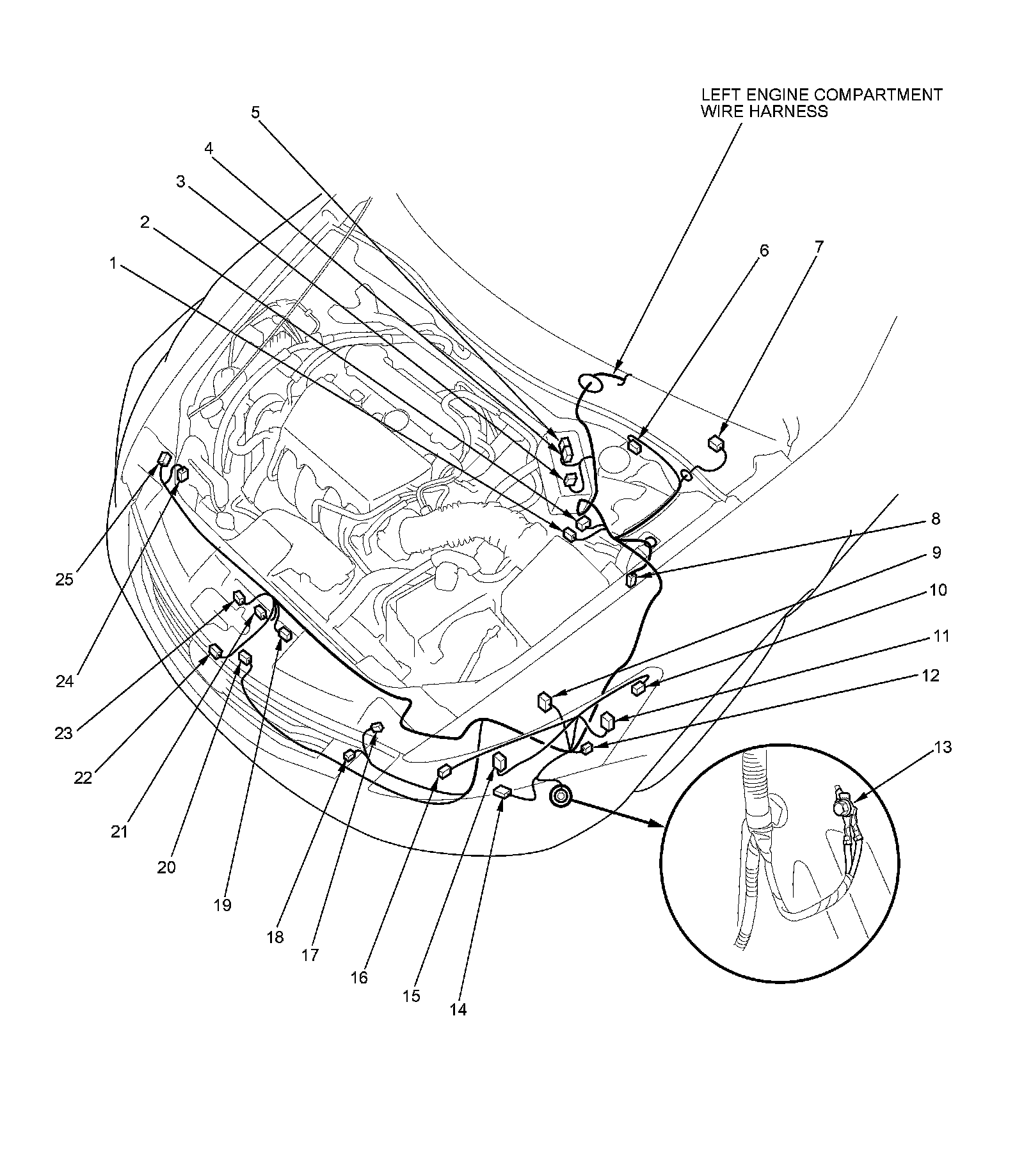

Harness View
